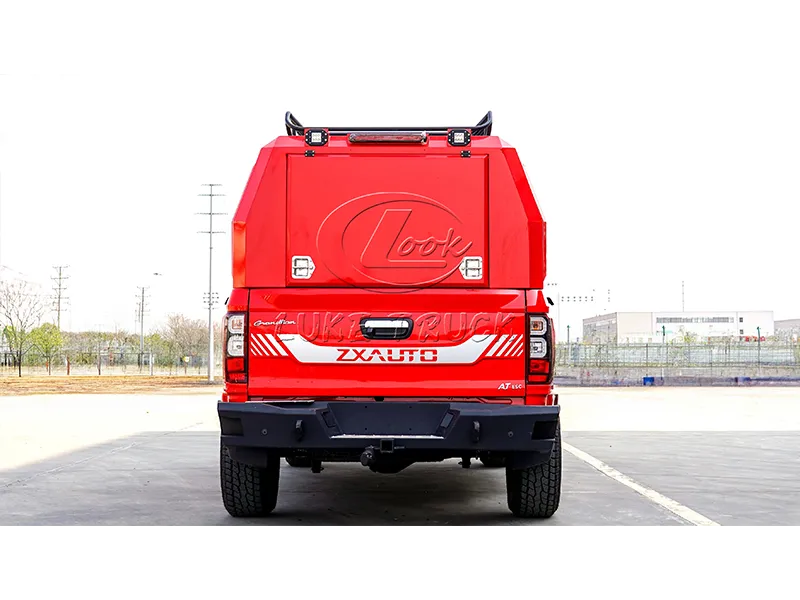

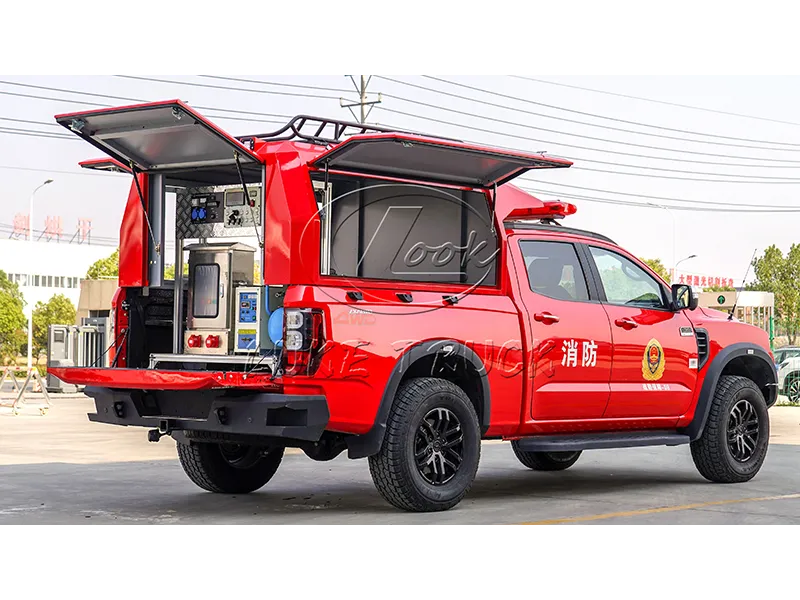

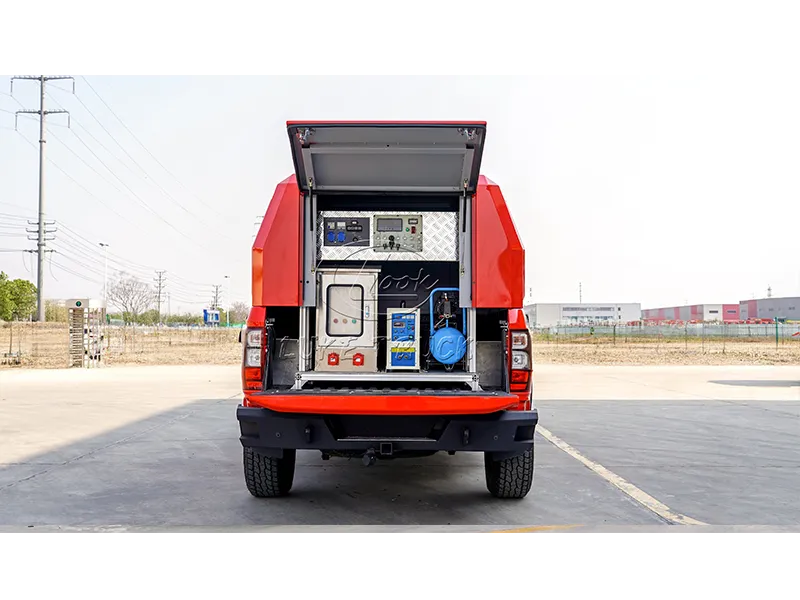

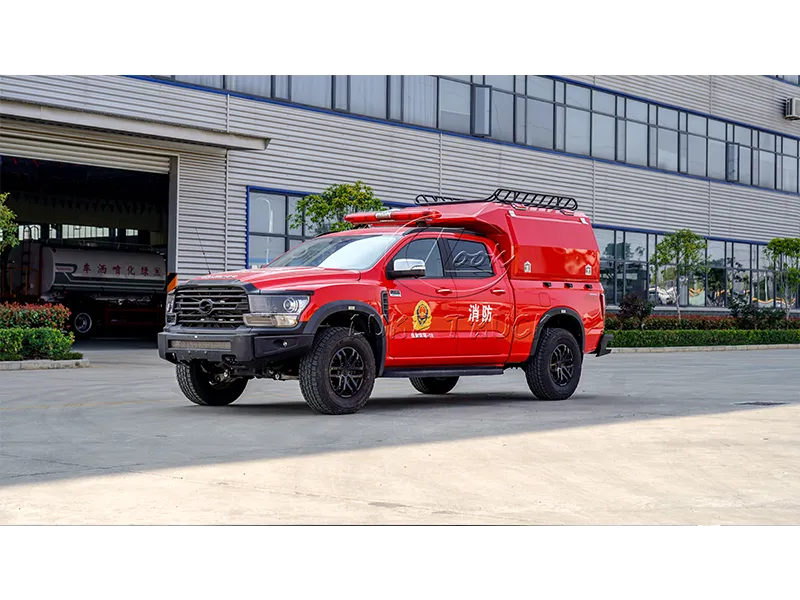

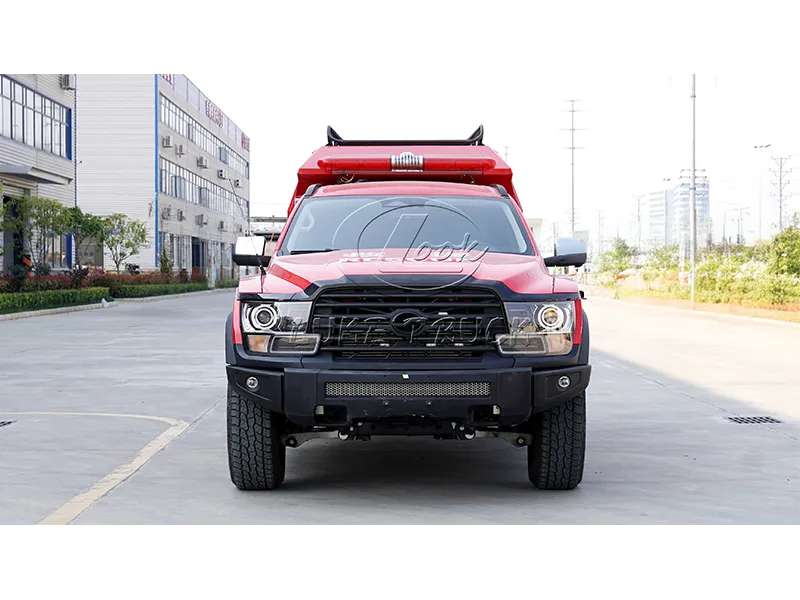

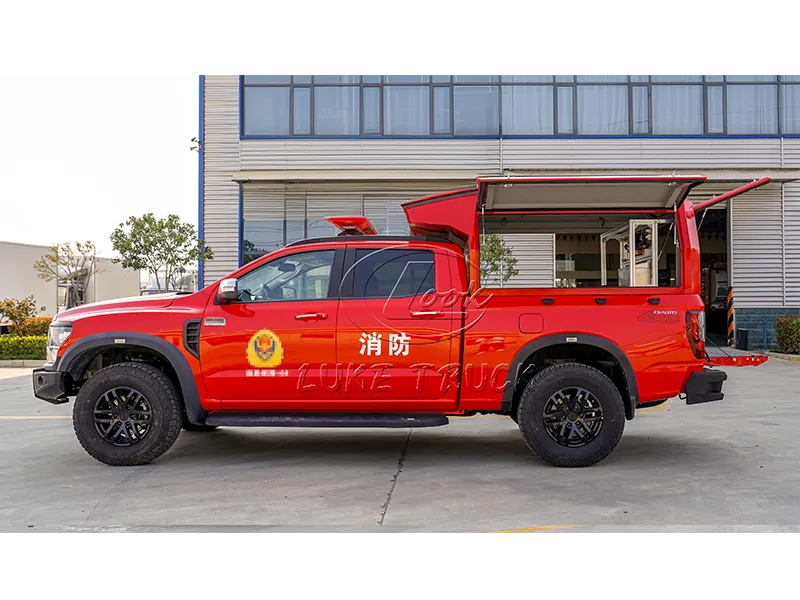

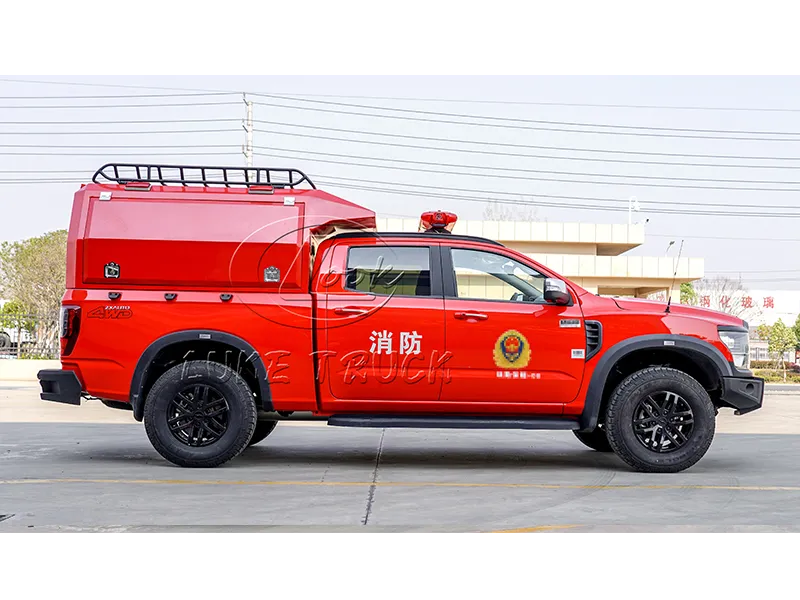

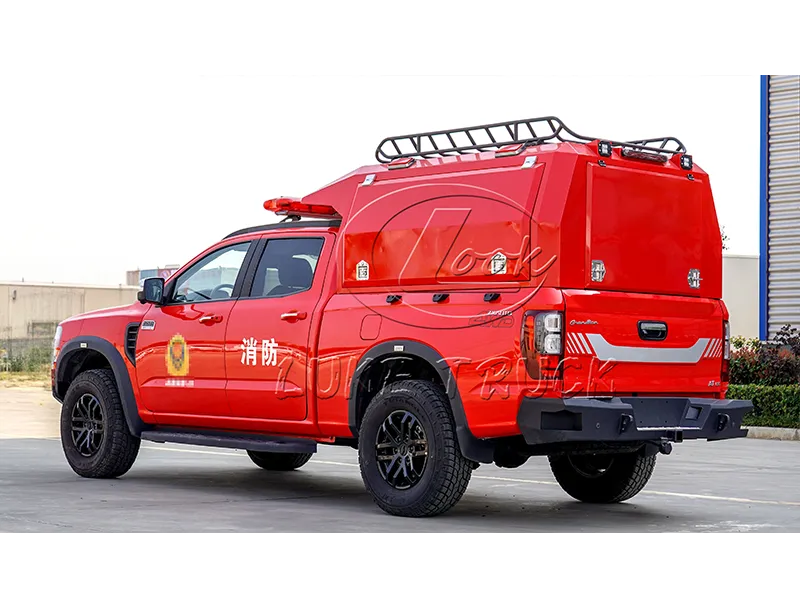

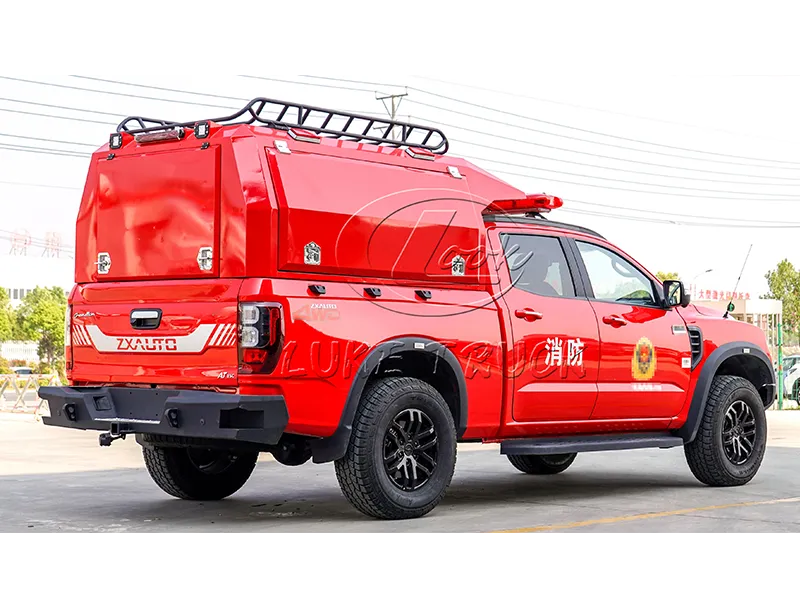

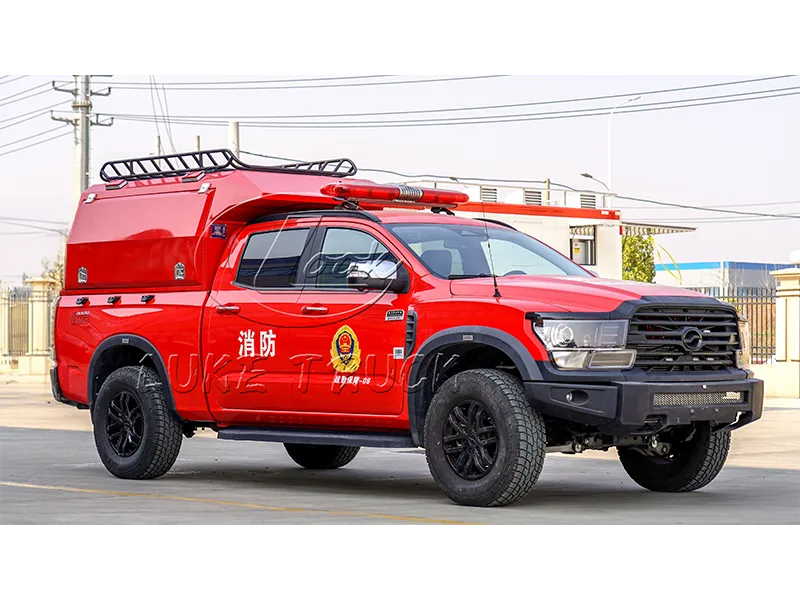

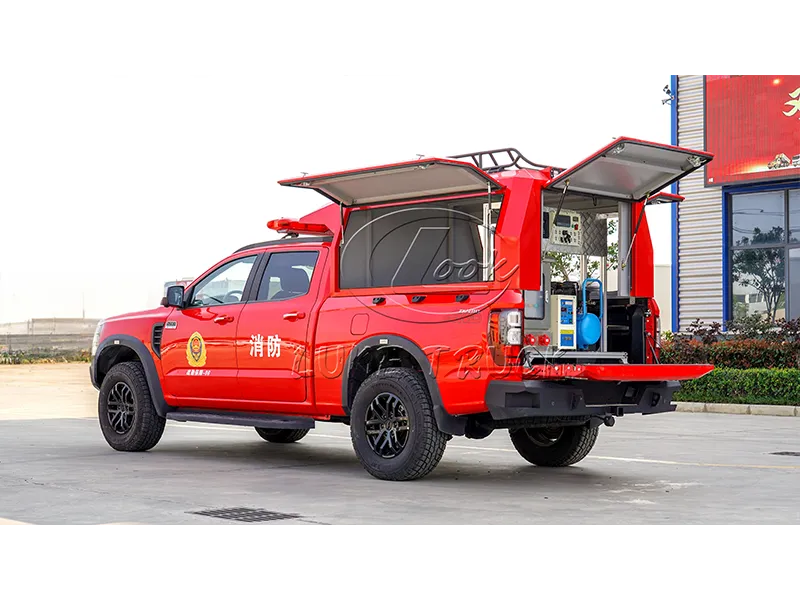

The Pickup-Based Equipment Fire Truck is built upon a light-duty pickup chassis. It is a compact, agile, and rapid-response small-scale firefighting vehicle featuring integrated equipment. Its primary applications include the initial suppression of fires, emergency rescue operations, and fire safety patrols in confined areas such as residential communities, narrow streets and alleys, scenic spots, rural townships, and industrial parks.
| Technical Specifications for 4x4 Pickup-Based Firefighting Equipment Vehicle | |||
| Item | Specification | Item | Specification |
| Brand | MP | Curb Weight (kg) | 2475 |
| Product Name | Equipment Fire Truck | Model | QY5031TXFQC10/Y65 |
| Total Mass (kg) | 2850 | Seating Capacity | 5 |
| Rated Payload (kg) | / | Overall Dimensions (mm) | 5653×1883×1882 |
| Seating Capacity | 2+3 | Chassis Model | CC1030QA62J |
| Approach/Departure Angle (°) | 27/21 | Front/Rear Overhang (mm) | 951/1232 |
| Axle Load (kg) | 1345/1505 | Maximum Speed (km/h) | 145 |
| The ABS manufacturer is Bosch Automotive Components (Suzhou) Co., Ltd., and the model is ESP9. The primary specialized equipment consists of various types of firefighting gear. The vehicle may be optionally equipped with a direct-power ETC on-board unit. Optional features available from the original manufacturer include front combination lamps, front fog lamp trim covers, rear combination lamps, rear cargo door handles, and rear markings. | |||
| Chassis Technical Specifications | |||
| Front Track Width (mm) | 1580 | Rear Track (mm) | 1580 |
| Number of Axles | 2 | Number of Tires | 4 |
| Leaf Spring Configuration | -/5 | Wheelbase (mm) | 3470 |
| Fuel Type | Oil | Tire Specifications | 245/70R17 |
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
| GW4D20M | Great Wall Motor Co., Ltd. | 1996 | 122 |
