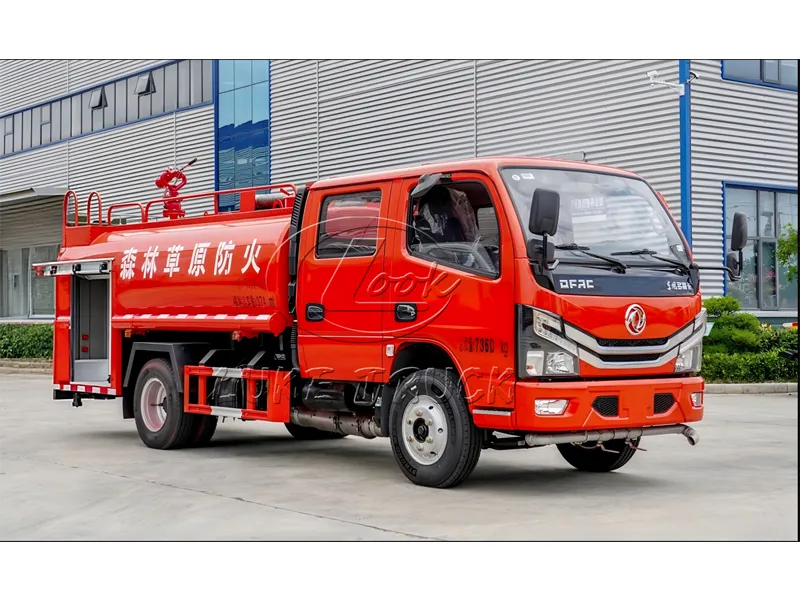

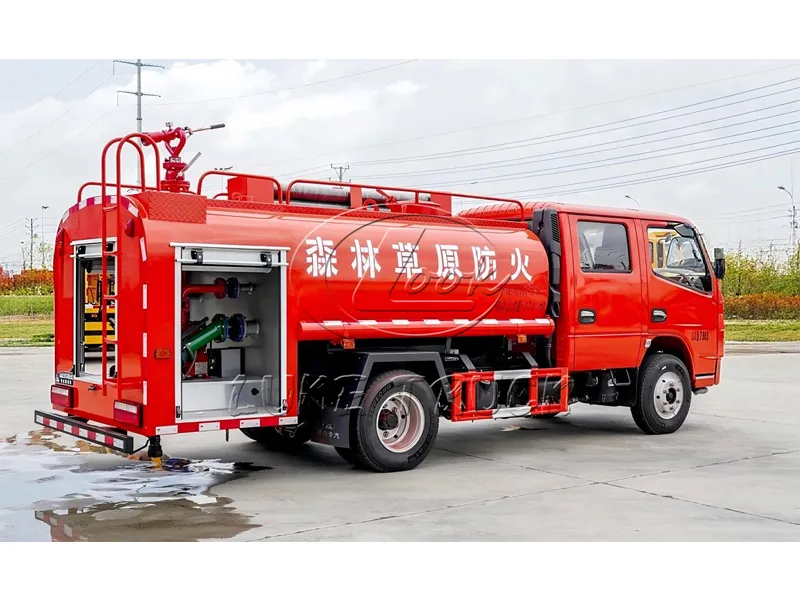

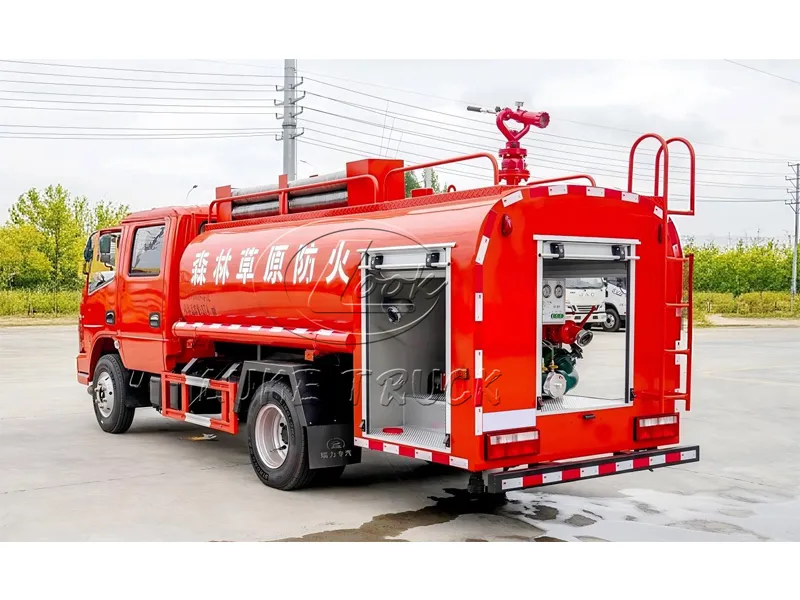

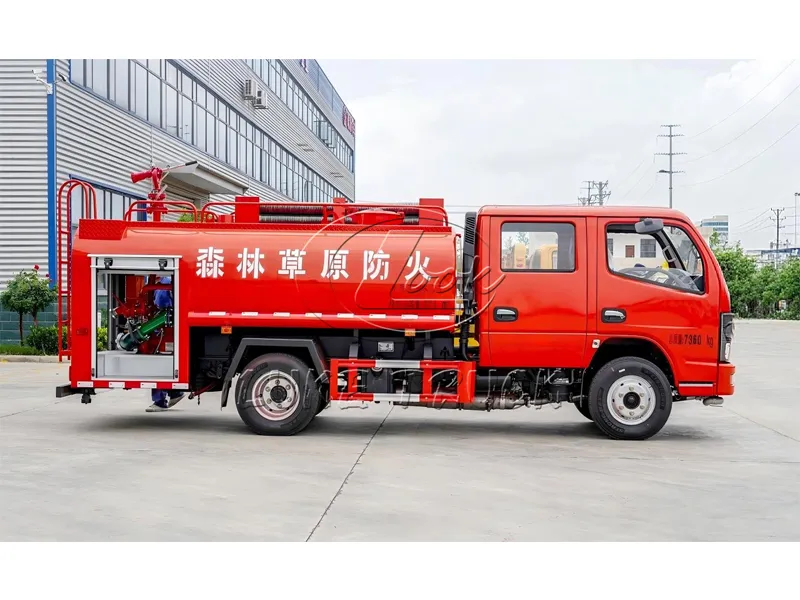

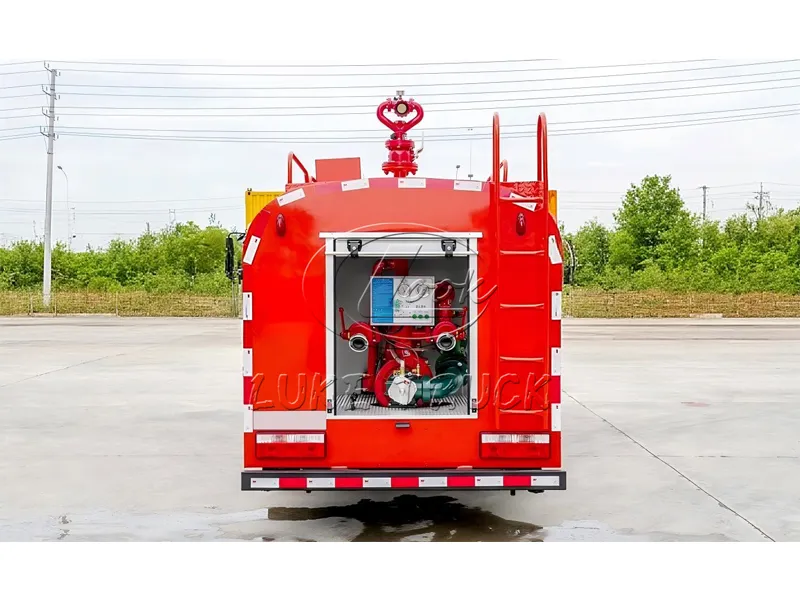

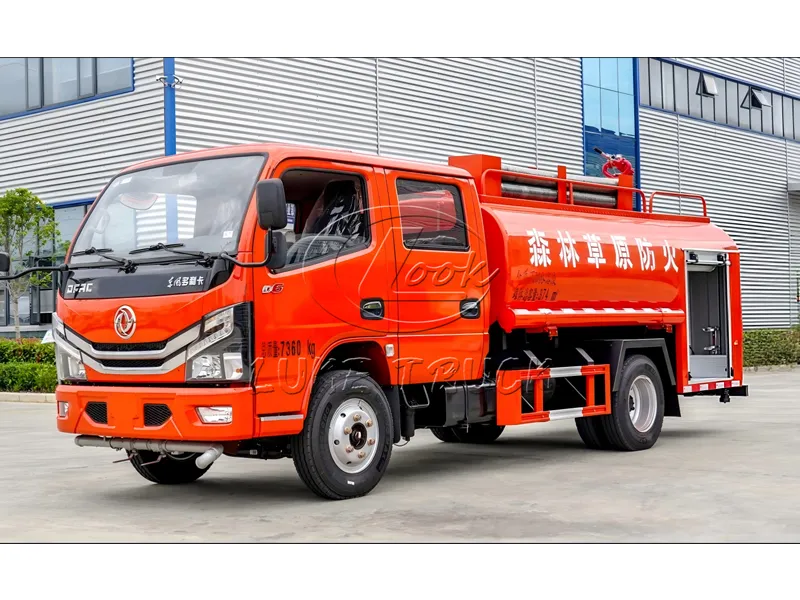

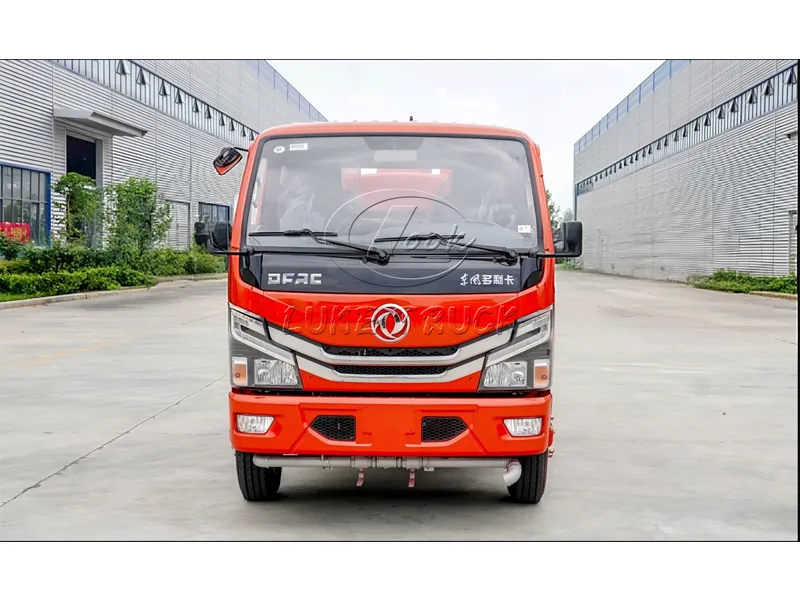

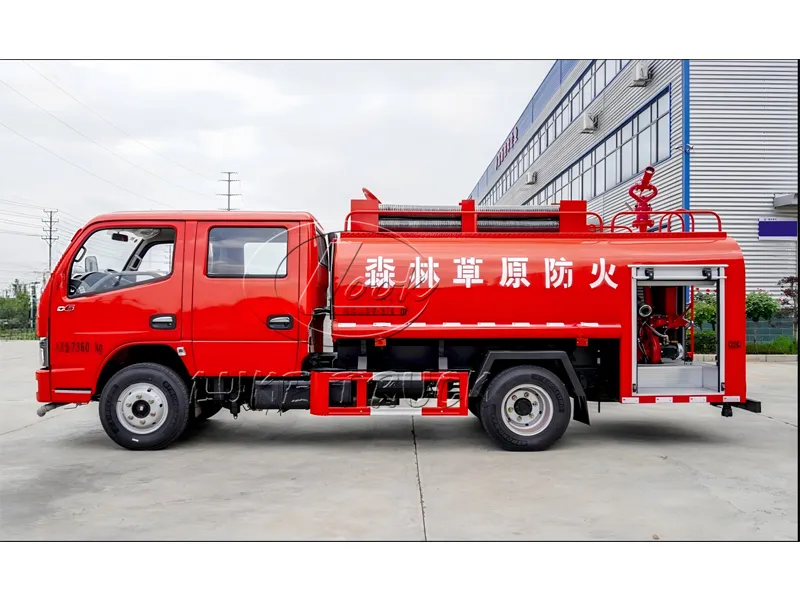

The Dongfeng 5m³ Water Tank Fire Sprinkler Truck is a multi-purpose special operation vehicle built on a light-duty truck chassis, integrating fire suppression and sanitation sprinkling functions. It features "dual-purpose design, efficient emergency response, and cost-effectiveness". Equipped with a 65CWY-40 fire pump (flow rate: 40 L/s, head: 110 m) and a 360° rotating fire monitor (direct/spray modes, range: 50–80 meters). It provides more efficient protection for residents' daily life safety and social order, and is widely used in municipal, industrial park, township and other scenarios.
Item | Specification | Item | Specification |
Brand | Qiyuan | Curb Weight (kg) | 2,985 |
Product Name | Water Tank Fire Truck | Model | QY5040GXFSG10/E6 |
Gross Vehicle Weight (kg) | 4,360 | Tank Volume (m³) | 1.0 |
Rated Payload (kg) | 1,000 | Overall Dimensions (mm) | 5,680 × 1,780 × 2,520 |
Seating Capacity | 2+3 | Wheelbase (mm) | 3,300 |
Approach/Departure Angle (°) | 21/15 | Front/Rear Overhang (mm) | 1,181/1,499 |
Axle Load (kg) | 1,520/2,840 | Maximum Speed (km/h) | 100 |
Water tank volume: 1.0 m³; water tank dimensions: 1,220 × 850 × 1,010 mm. Integral side protection structure. Rear protection material: Q235A, cross-section size: 100 × 50 mm, connected to the vehicle via bolts; ground clearance of rear protection: 385 mm. ABS manufacturer: Zhejiang Asia-Pacific Mechanical & Electronic Co., Ltd., model: APG3550500A. Main special equipment includes fire pump and fire monitor; cab style can be optionally selected with the chassis. | |||
Chassis Technical Specifications | |||
Item | Specification | Item | Specification |
Chassis Model | EQ1040D16DC | Tire Specification | 185R15LT 8PR |
Brand | Dongfeng | Manufacturer | Dongfeng Automobile Co., Ltd. |
Number of Axles | 2 | Number of Tires | 6 |
Leaf Spring Configuration | 3/5, 2/2+1 | Front Track (mm) | 1,369, 1,387 |
Fuel Type | Diesel | Rear Track (mm) | 1,242, 1,342, 1,458 |
Emission Standard | GB17691-2018 China National VI | ||
Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
Q23A-110E60 | Anhui Quanchai Engine Co., Ltd. | 2,300 | 80 |
