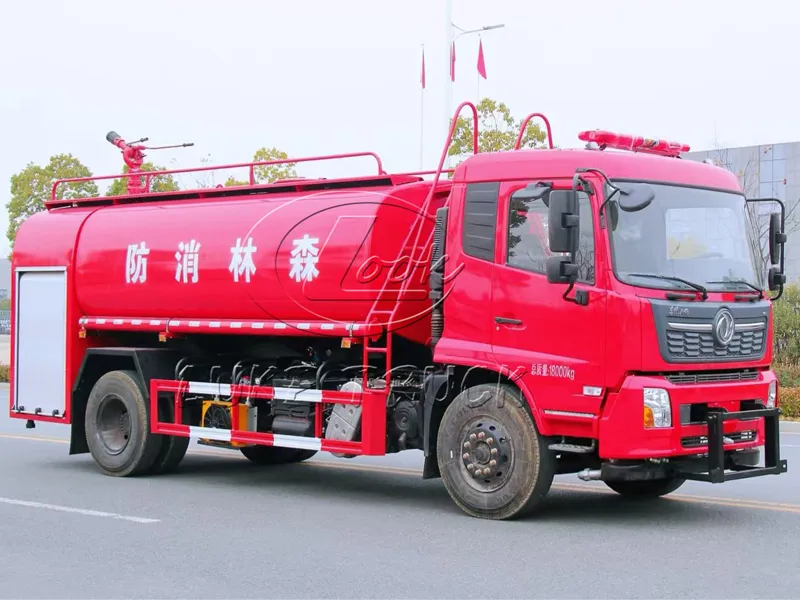

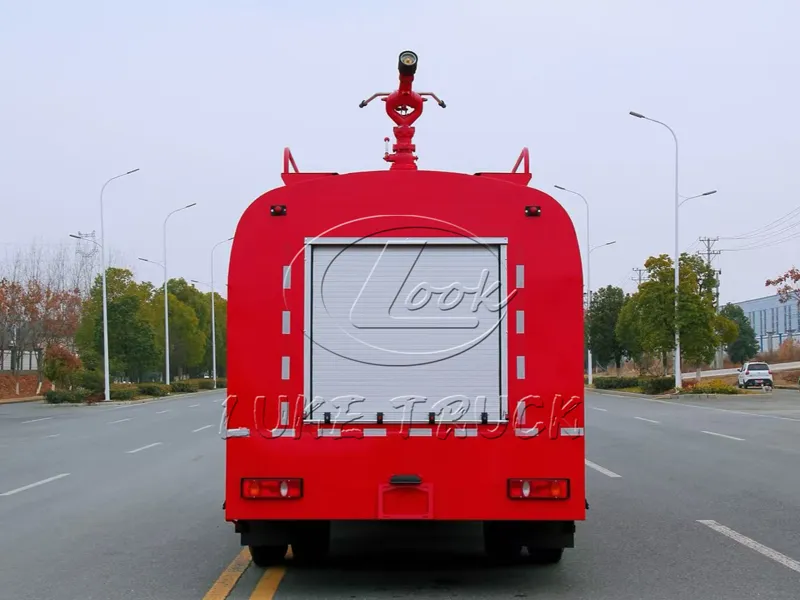

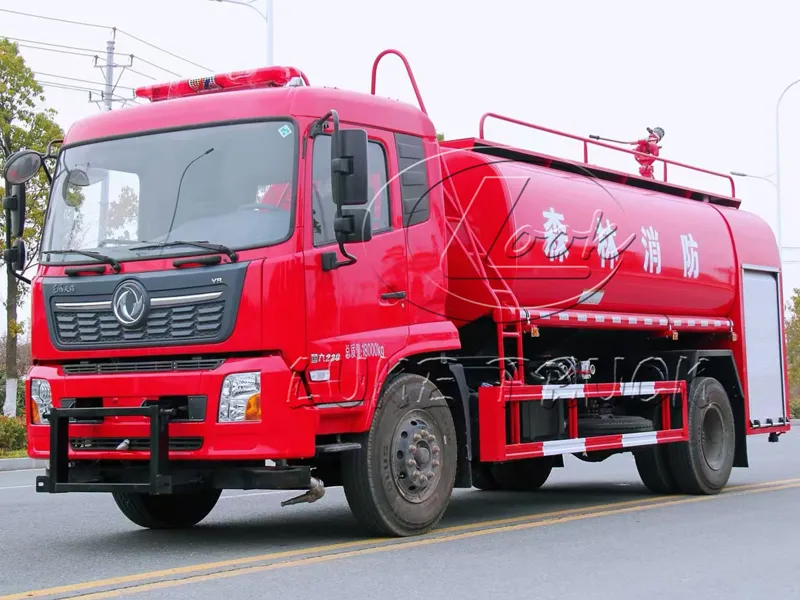

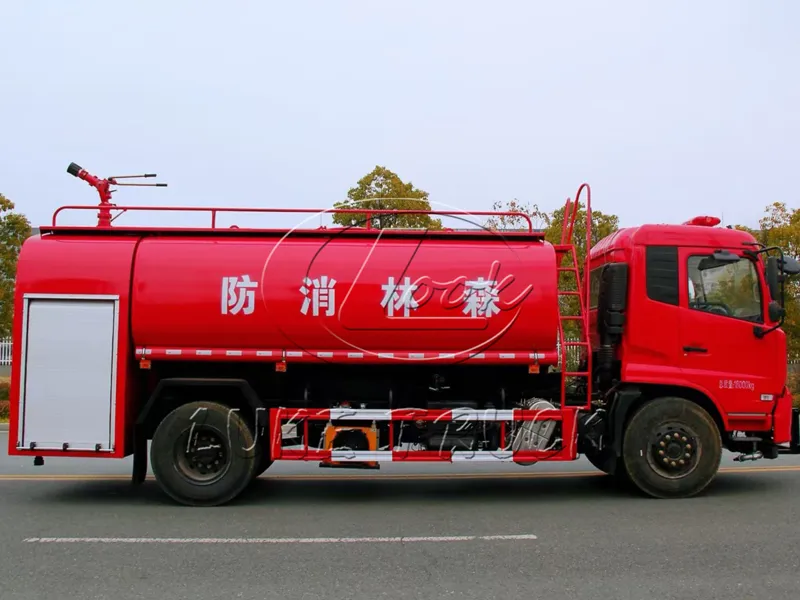

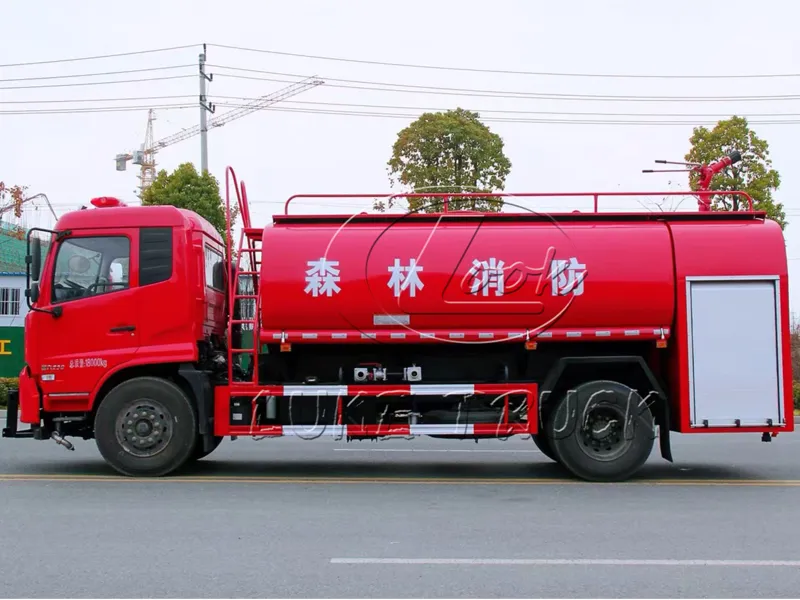

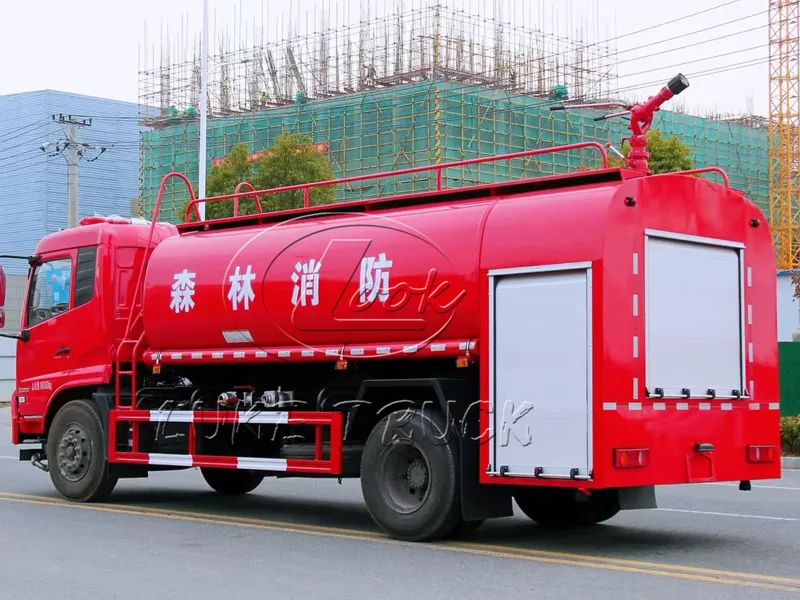

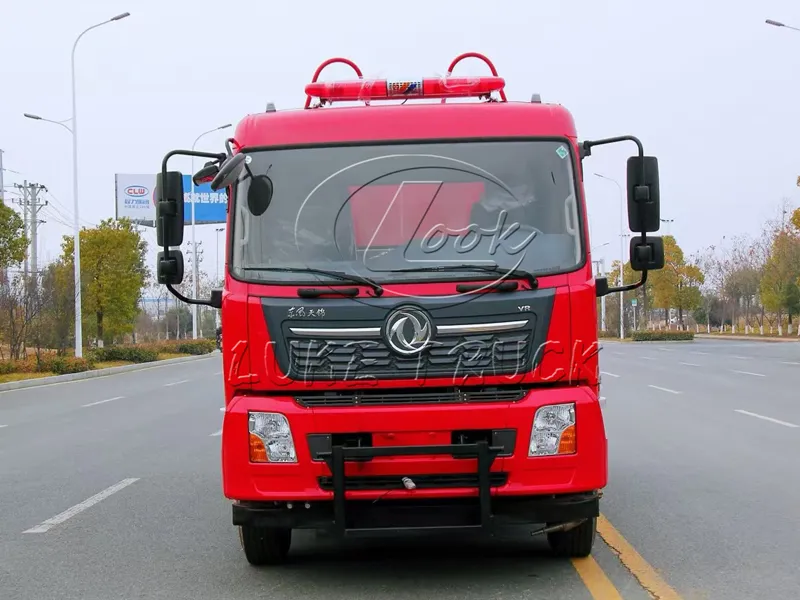

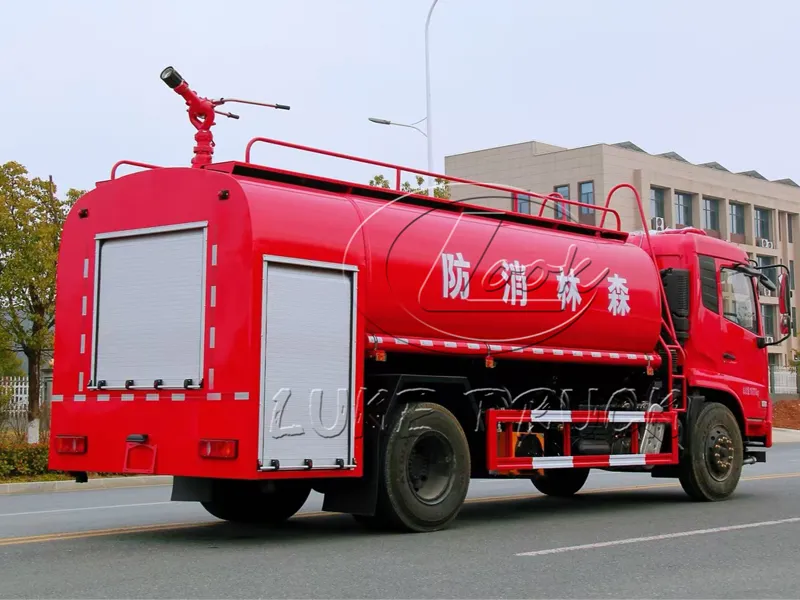

The Dongfeng Kinland Fire Sprinkler Truck is a multi-purpose special operation vehicle built on a medium-duty truck chassis, integrating fire suppression and sanitation sprinkling functions. It features dual-purpose design, efficient emergency response, and cost-effectiveness, widely used in municipal, industrial park, township and other scenarios. Equipped with a 65CWY-40 fire pump (flow rate: 40 L/s, head: 110 m) and a 360° rotating fire monitor (direct/spray modes, range: 50–80 meters).
Item | Specification | Item | Specification |
Brand | Qiyuan | Cab Seating Capacity | 2, 3 |
Product Name | Greening Sprinkler Truck | Model | QY5185GPSE6 |
Gross Vehicle Weight (kg) | 18,000 | Tank Volume (m³) | 11.67 |
Rated Payload (kg) | 10,870 | Overall Dimensions (mm) | 9,350 × 2,550 × 3,280 |
Curb Weight (kg) | 7,240; 7,000 | Cargo Box Dimensions (mm) | N/A |
Approach/Departure Angle (°) | 17/10 | Front/Rear Overhang (mm) | 1,400/2,740 |
Axle Load (kg) | 6,500/11,500 | Maximum Speed (km/h) | 89; 98 |
Special equipment: water tank. Total tank capacity: 11.67 m³, effective capacity: 11.12 m³. Standard tank dimensions (L × major axis × minor axis): 5,000 × 2,340 × 1,480 mm. Optional tank dimensions: 5,200 × 2,300 × 1,450 mm. | |||
Chassis Technical Specifications | |||
Item | Specification | Item | Specification |
Chassis Model | DFH1180EX8 | Wheelbase (mm) | 5,000 |
Brand | Dongfeng | Manufacturer | Dongfeng Commercial Vehicle Co., Ltd. |
Number of Axles | 2 | Number of Tires | 6 |
Tire Specification | 10.00R20 18PR | Emission Standard | GB17691-2018 China National VI |
Leaf Spring Configuration | 7/9+6 | Front Track (mm) | 1,870 |
Fuel Type | Diesel | Rear Track (mm) | 1,820 |
Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
D4.5NS6B240 | Dongfeng Cummins Engine Co., Ltd. | 4,500 | 176 |
