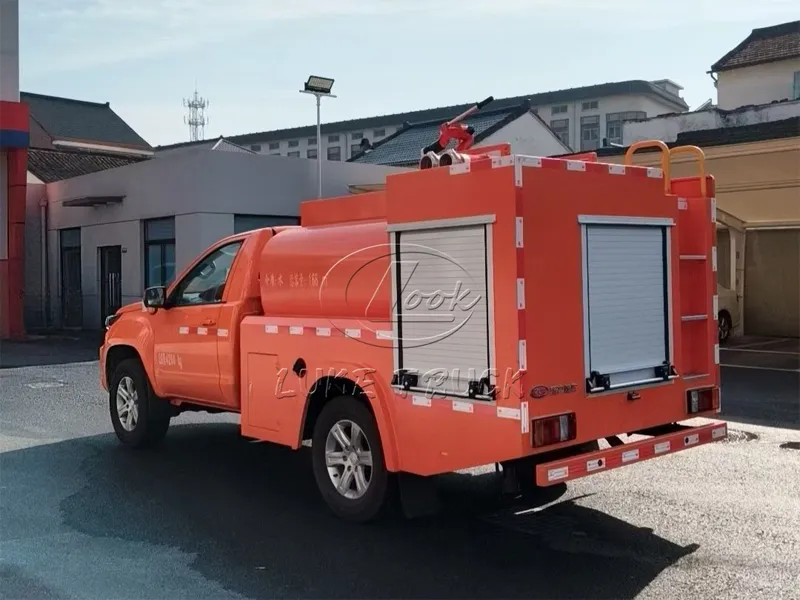

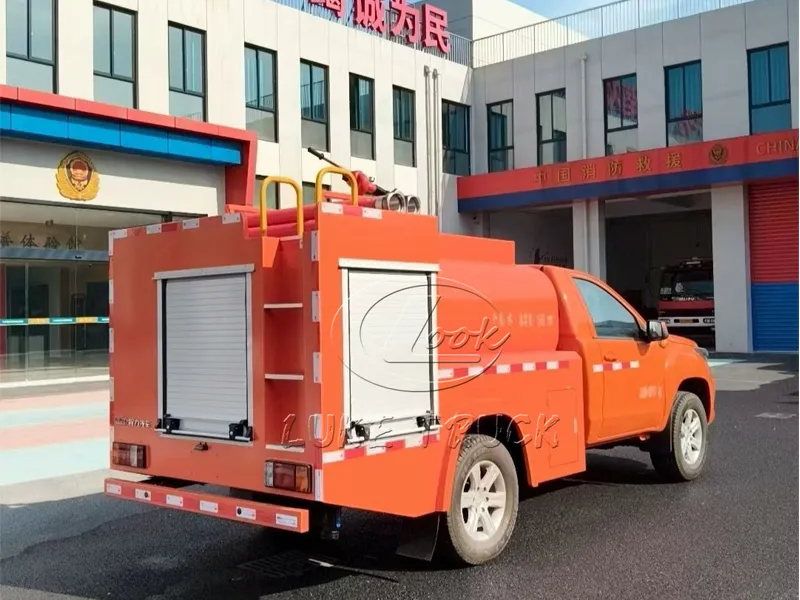

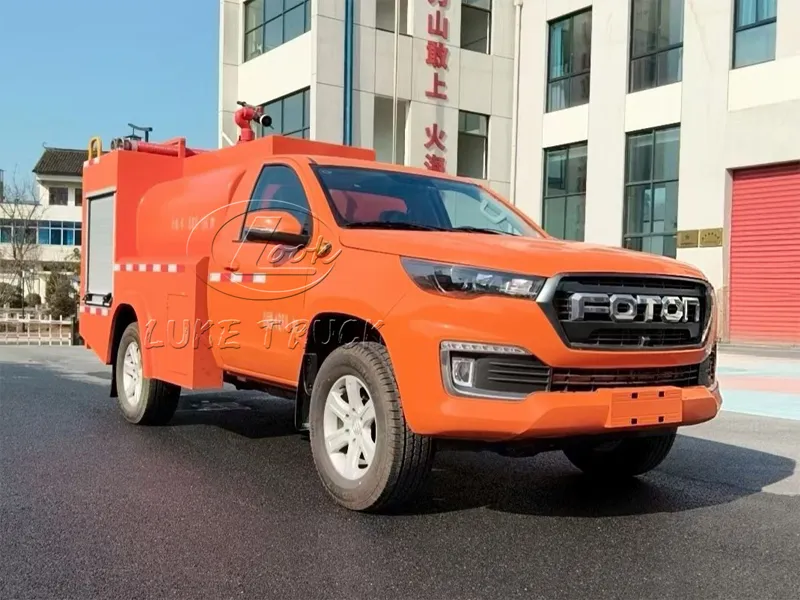

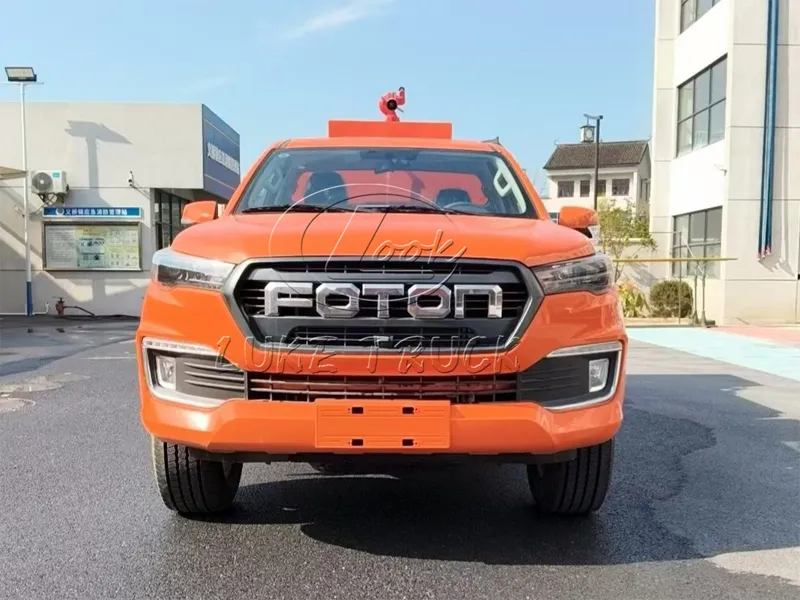

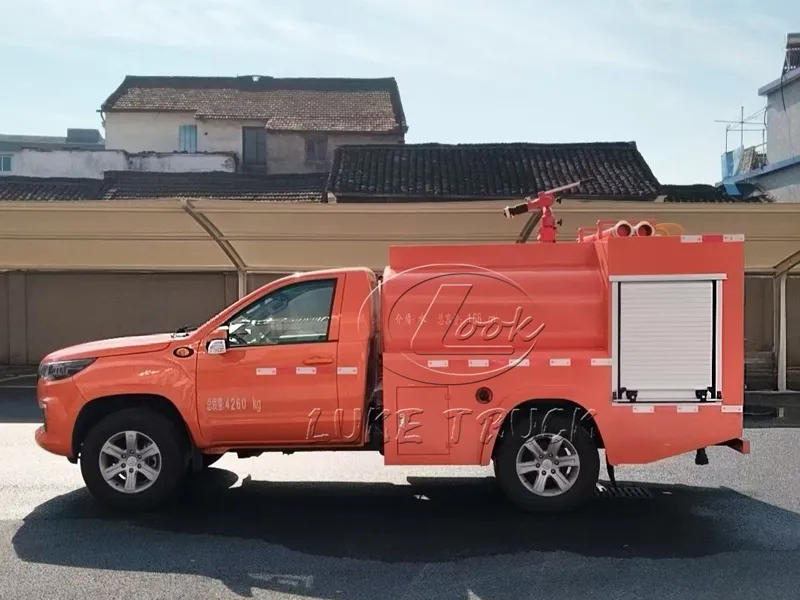

The Foton Pickup Water Mist Fire Truck is built on a Foton pickup off-road chassis and integrated with a fine water mist fire extinguishing system. It is a compact, flexible, highly maneuverable, water-efficient light fire-fighting equipment designed for initial fire response in narrow spaces and complex terrain. Key advantages include rapid on-site arrival, low water consumption, and wide adaptability. Water is pressurized to 5–15 MPa by a high-pressure pump and atomized into 10–100 μm ultra-fine mist via dedicated nozzles, rapidly absorbing heat, isolating oxygen, and penetrating deep into fire sources. It saves 50%–80% water and is suitable for Class A (solid), Class B (liquid), and electrical initial fires.
Item | Specification | Item | Specification | |
Brand | Qiyuan | Emission Standard | GB18352.6-2016 China National VI | |
Product Name | Water Mist Fire Truck | Model | QY5030GXFPW0.5 | |
Gross Vehicle Weight (kg) | 3,080 | Tank Volume (m³) | 0.500 | |
Rated Payload (kg) | 500 | Overall Dimensions (mm) | 5,630 × 1,940 × 1,960 | |
Curb Weight (kg) | 2,205 | Seating Capacity | 2+3 | |
Approach/Departure Angle (°) | 27/19 | Front/Rear Overhang (mm) | 955/1,275 | |
Axle Load (kg) | 1,330/1,750 | Maximum Speed (km/h) | 140 | |
Water tank volume: 0.500 m³, water tank dimensions: 1,000 × 1,100 × 475 mm. ABS manufacturer: Bosch Automotive Components (Suzhou) Co., Ltd., model: ABS9. Main special equipment includes a water mist fire extinguishing device. | ||||
| Chassis Technical Specifications | ||||
Item | Specification | Item | Specification | |
Chassis Model | BJ2037Y3MVV-7L | Chassis Name | Multi-Purpose Off-Road Truck Chassis | |
Brand | Foton | Manufacturer | Beiqi Foton Motor Co., Ltd. | |
Number of Axles | 2 | Number of Tires | 4 | |
Wheelbase (mm) | 3,400 | Tire Specification | 265/65R17 | |
Leaf Spring Configuration | -/5, -/6 | Front Track (mm) | 1,600 | |
Fuel Type | Gasoline | Rear Track (mm) | 1,580 | |
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) | |
4G20TI5 | Beijing Borgward Automotive Co., Ltd. | 1,981 | 175 | |
