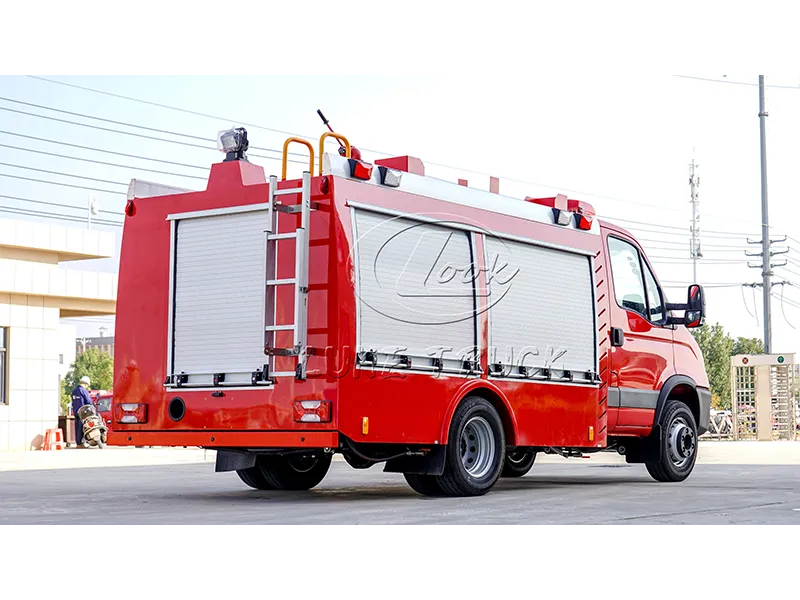

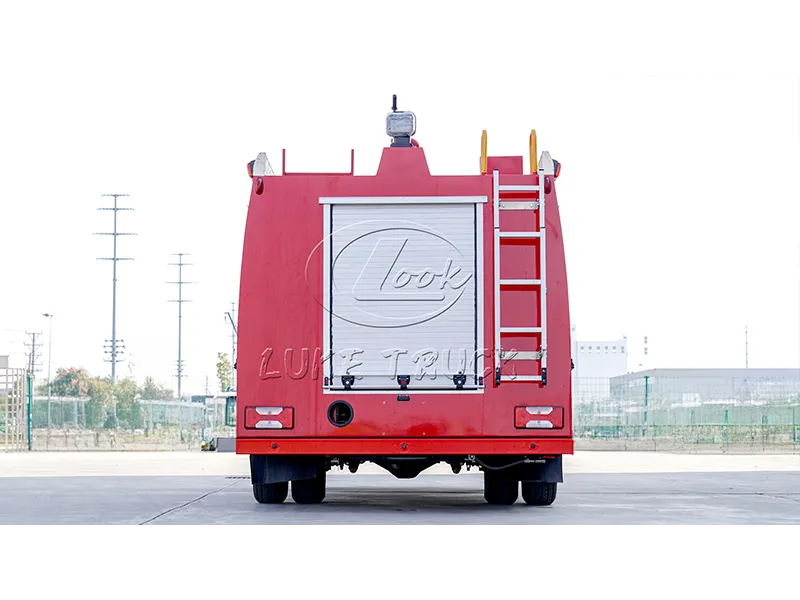

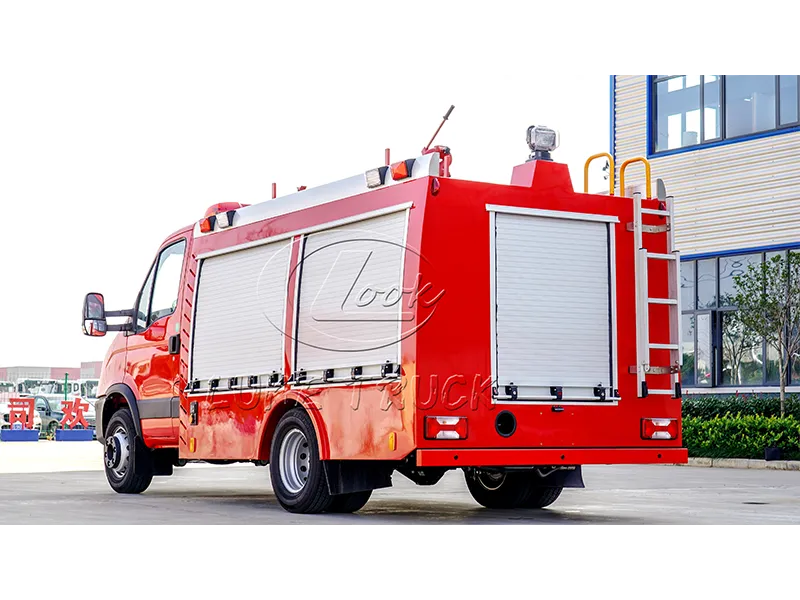

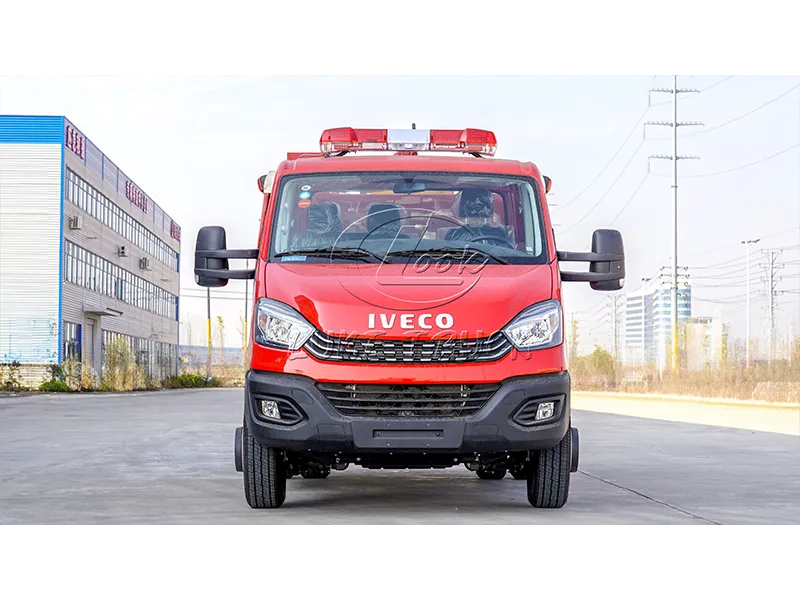

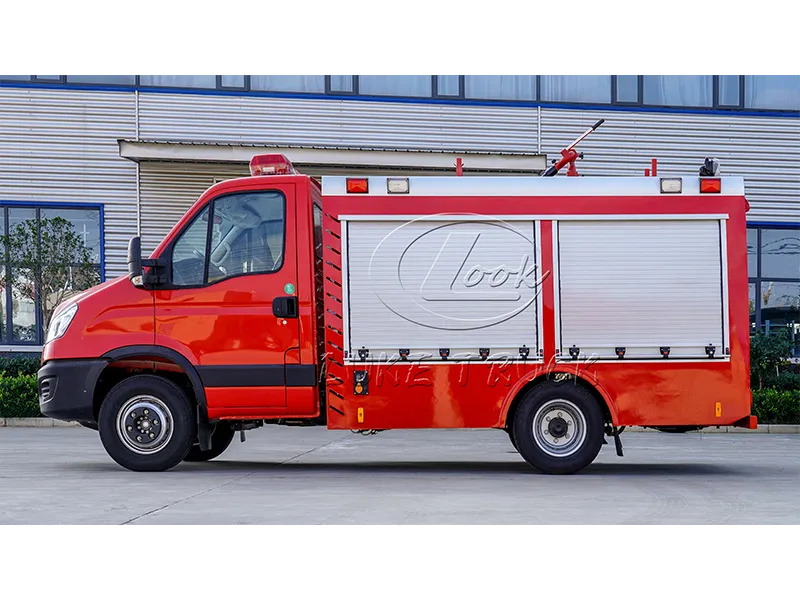

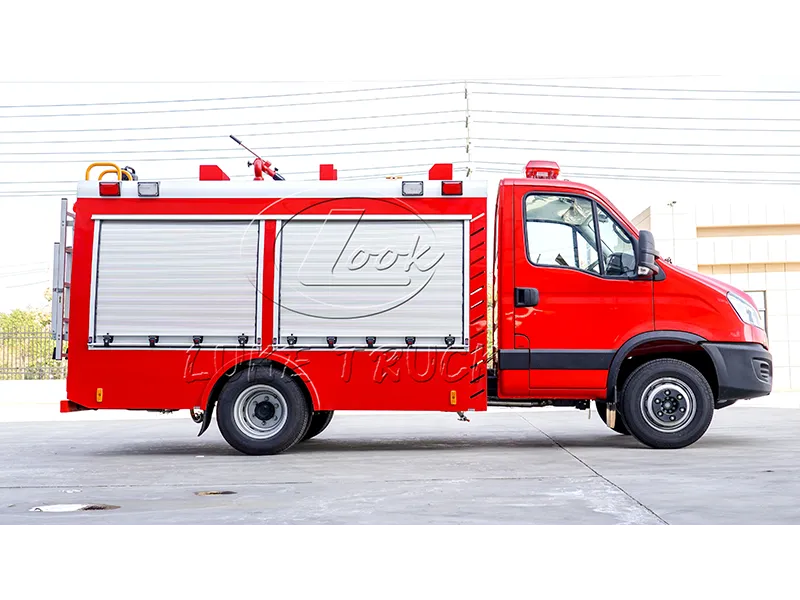

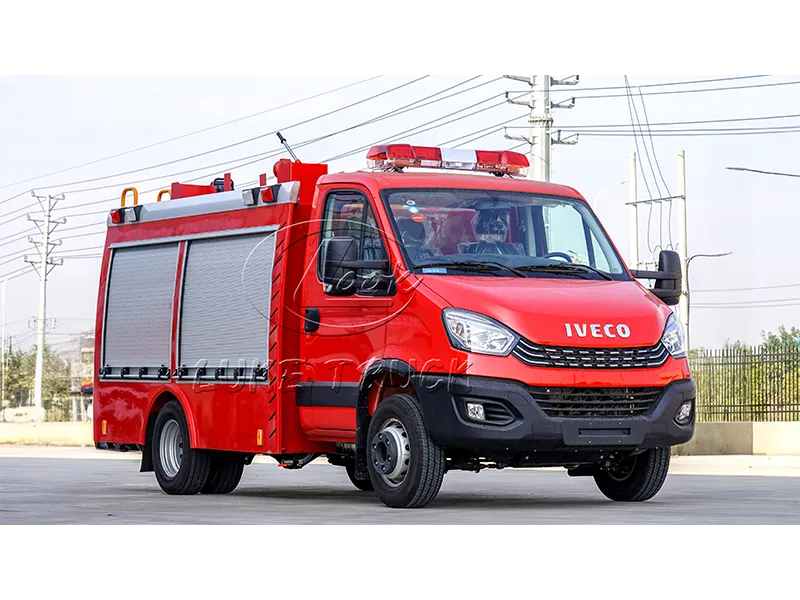

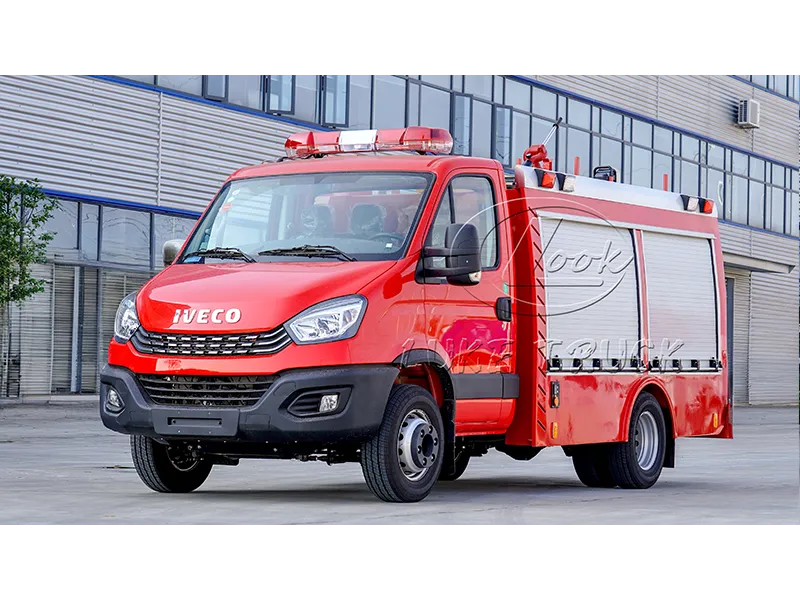

The IVECO Compressed Air Foam Fire Truck (hereinafter referred to as the CAFS Fire Truck)—built upon a specialized Iveco chassis and integrated with a compressed air foam system—serves as a medium-sized primary firefighting apparatus designed for urban environments, industrial parks, and complex operational scenarios. It strikes an optimal balance between maneuverability, high-efficiency fire suppression, and strong adaptability, prioritizing rapid response, minimal collateral damage, and extensive coverage. By effectively balancing mobility, payload capacity, and fire suppression power, this vehicle not only serves as a viable alternative to certain large-scale fire trucks but also fills critical operational gaps in narrow alleys and areas with height restrictions.
| Iveco Compressed Air Foam Fire Truck — Technical Specifications | |||
| Item | Specification | Item | Specification |
| Brand | MP | Curb Weight (kg) | 4860 |
| Product Name | Compressed Air Foam Fire Truck | Model | QY5060GXFAP10/ER6 |
| Total Mass (kg) | 6300 | Tank Volume (m3) | 0.99 |
| Rated Payload (kg) | 990 | Overall Dimensions (mm) | 5653×1883×1882 |
| Seating Capacity | 3+3 | Wheelbase (mm) | 3300 |
| Approach/Departure Angle (°) | 19/12 | Front/Rear Overhang (mm) | 1002/1658 |
| Axle Load (kg) | 1850/4450 | Maximum Speed (km/h) | 110 |
| The front axle features an independent suspension system utilizing double wishbones and torsion bars, while the rear axle employs a non-independent leaf spring suspension system. The total volume of the tank assembly is 0.990 cubic meters. The water tank volume is 0.800 cubic meters; the tank features a non-uniform (irregular) structural design, with upper dimensions of 500 × 800 × 490 mm and lower dimensions of 1000 × 800 × 790 mm. The Class A foam concentrate tank has a volume of 0.190 cubic meters and dimensions of 500 × 800 × 490 mm. The vehicle features an integral side protection structure. The rear protective device is constructed from Q235A steel, with a cross-sectional profile (width × height) of 95 × 220 mm; it is attached to the vehicle via bolted connections, and its ground clearance is 280 mm. The ABS system is manufactured by Bosch Automotive Components (Suzhou) Co., Ltd., model number ESP9. The primary specialized equipment includes a Compressed Air Foam System (CAFS). The light strips located on both sides of the compartment roof are intended for use only during operational tasks. | |||
| Chassis Technical Specifications | |||
| Chassis Model | NJ1066EFC | Chassis Name | Cargo Truck Chassis |
| Brand | Iveco | Manufacturing Enterprise | Nanjing Automotive (Group) Corporation |
| Number of Axles | 2 | Emission Standard | GB17691-2018 China National VI |
| Tire Specifications | Tire Specifications | Front Track Width (mm) | 1725 |
| Leaf Spring Configuration | -/7,-/3,-/1+- | Rear Track (mm) | 1660;1680 |
| Fuel Type | Diesel | Number of Tires | 4 |
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
| F1CE8481K | Nanjing Iveco Automobile Co., Ltd. | 2998 | 125 |
