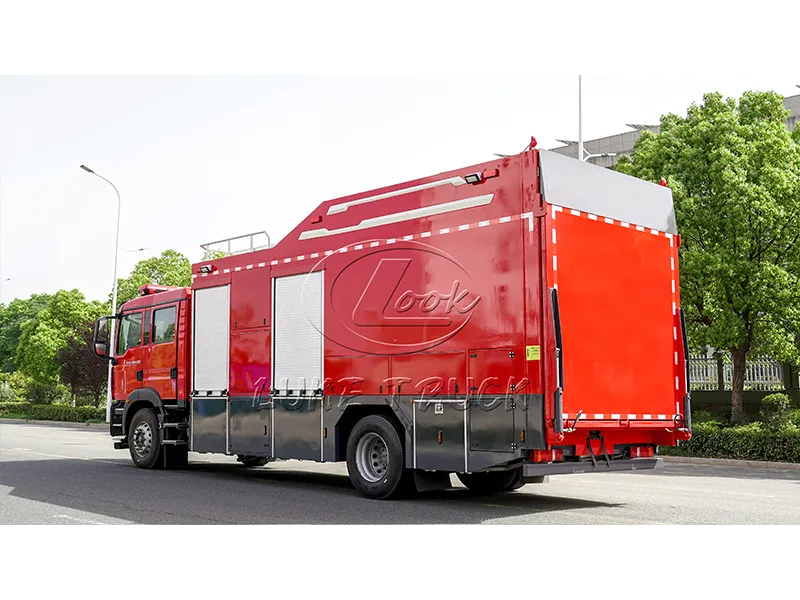

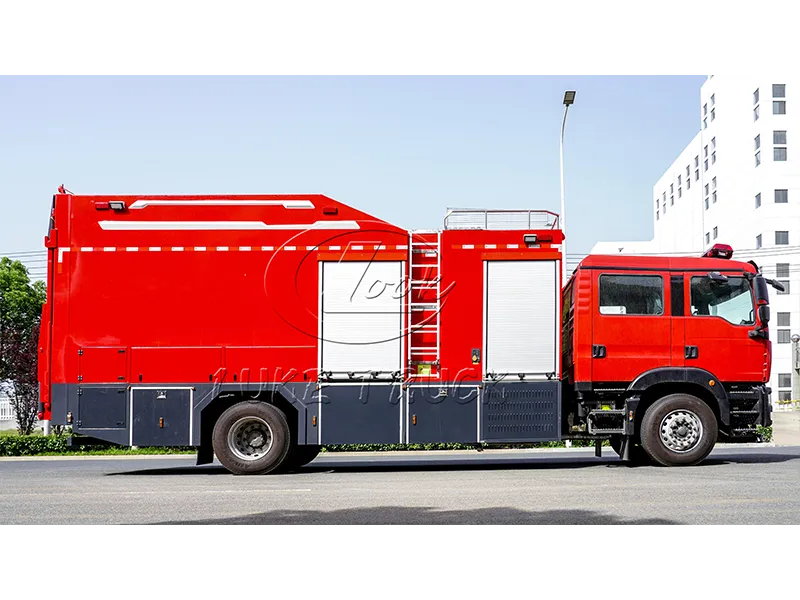

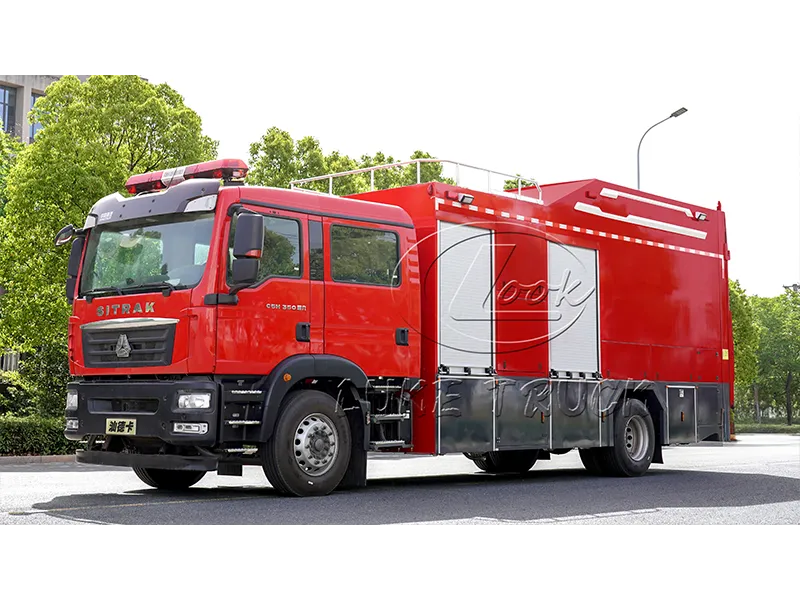

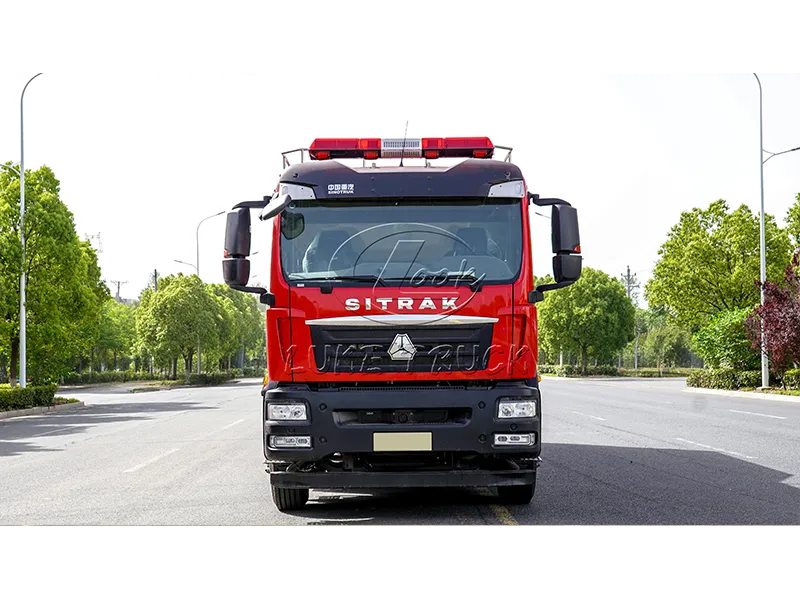

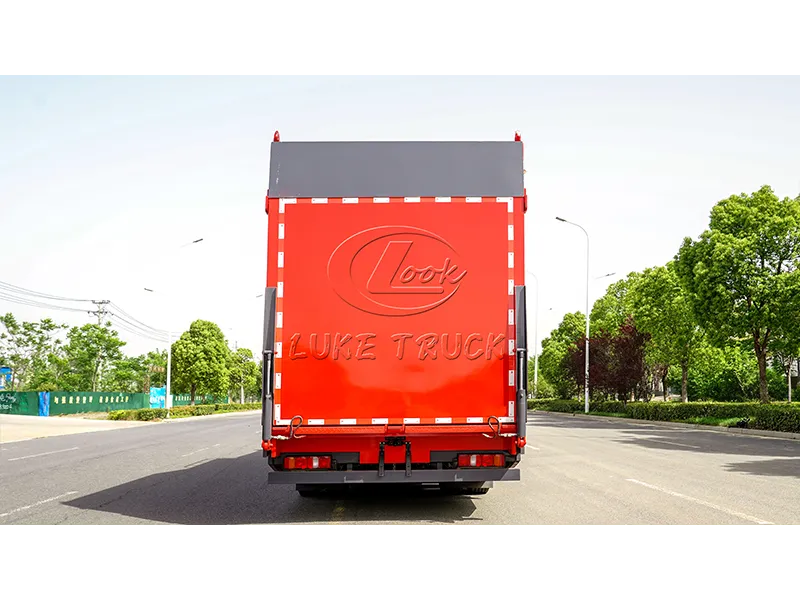

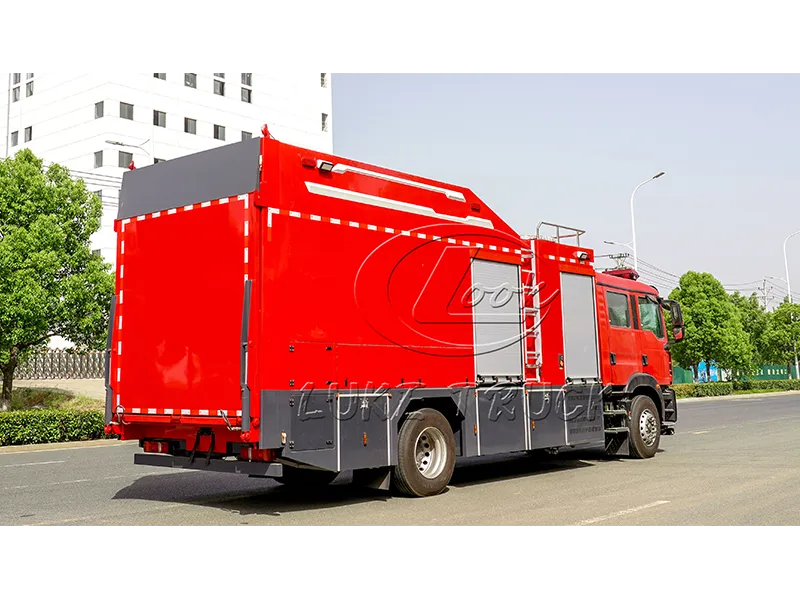

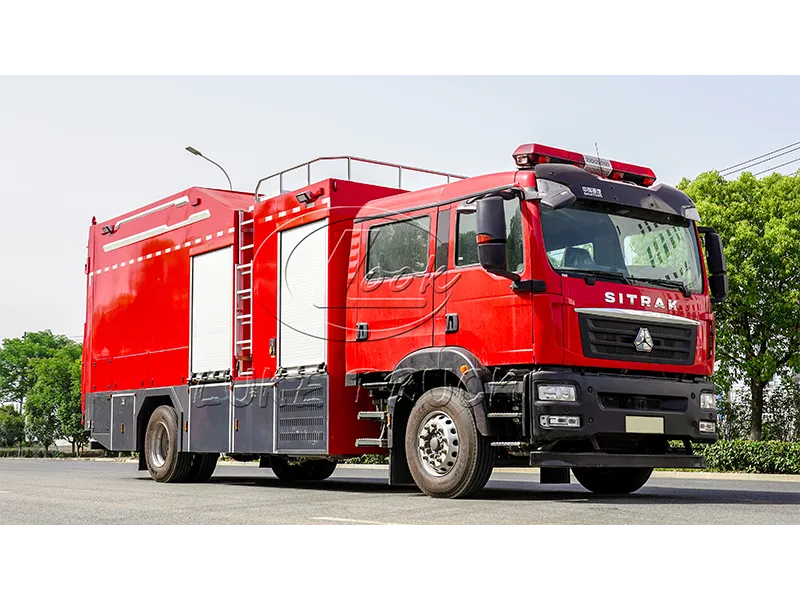

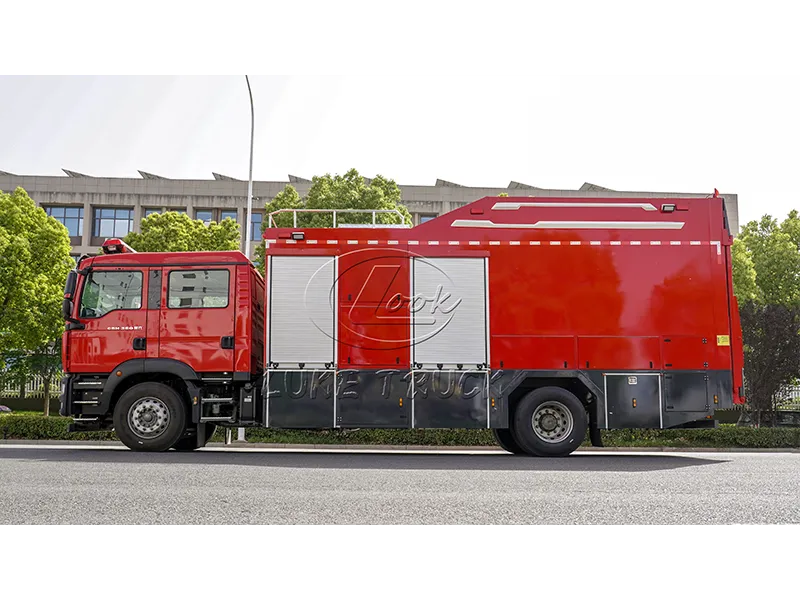

The Sinotruk SITRAK Compressed Air Foam Fire Truck (CAFS Fire Truck) is built upon a specialized chassis and integrates a compressed air foam system. It serves as a medium-sized primary firefighting apparatus—ideal for urban environments, industrial parks, and complex operational scenarios—that strikes a balance between agility, high-efficiency fire suppression, and strong adaptability. Its core strengths lie in rapid response, minimal collateral damage, and extensive coverage. By balancing mobility with payload capacity and fire suppression power, this vehicle not only serves as a viable alternative to certain large-scale fire trucks but also fills critical operational gaps in narrow alleys and areas with height restrictions.
| Sinotruk SITRAK Compressed Air Fire Truck — Technical Specifications | |||
| Item | Specification | Item | Specification |
| Brand | MP | Overall Dimensions (mm) | 10280×2530×3720 |
| Product Name | Lighting Fire Truck | Model | QY5180TXFZM100/HT6 |
| Total Mass (kg) | 17700 | Seating Capacity | 3+4 |
| Curb Weight (kg) | 17250,17175 | Emission Standard | GB17691-2018 China National VI |
| Approach/Departure Angle (°) | 19/9 | Front/Rear Overhang (mm) | 1430/3160,1430/3250 |
| Axle Load (kg) | 5900/11800,5000/12700 | Maximum Speed (km/h) | 100 |
| Equipped exclusively with 315/80R22.5 tires. Features an integral side protection structure. Rear protective device specifications: Material—Q235A; Cross-sectional dimensions—80 × 120 mm; Connection method to vehicle—Bolted; Ground clearance of rear protection—440 mm. ABS manufacturer: WABCO (Shanghai) Management Co., Ltd.; Model: 4460046300. The primary specialized equipment consists of a lighting system. Optional EBS is available; the EBS system controller manufacturer/model is ZF Commercial Vehicle Control Systems (Qingdao) Co., Ltd. / EBS3. An optional rear protection ground clearance of 465 mm is available. Different models of lighting systems may be selected as options. | |||
| Chassis Technical Specifications | |||
| Chassis Model | ZZ5207TXFV471GF5 | Wheelbase (mm) | 5600 |
| Brand | HOWO | Tire Specifications | 315/80R22.5 |
| Number of Axles | 2 | Number of Tires | 6 |
| Leaf Spring Configuration | 11/9+8 | Front Track Width (mm) | 1950,2035 |
| Fuel Type | Diesel | Rear Track (mm) | 1848,1860 |
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
| MC07H.35-60 | China National Heavy Duty Truck Group Co., Ltd. | 7360 | 257 |
