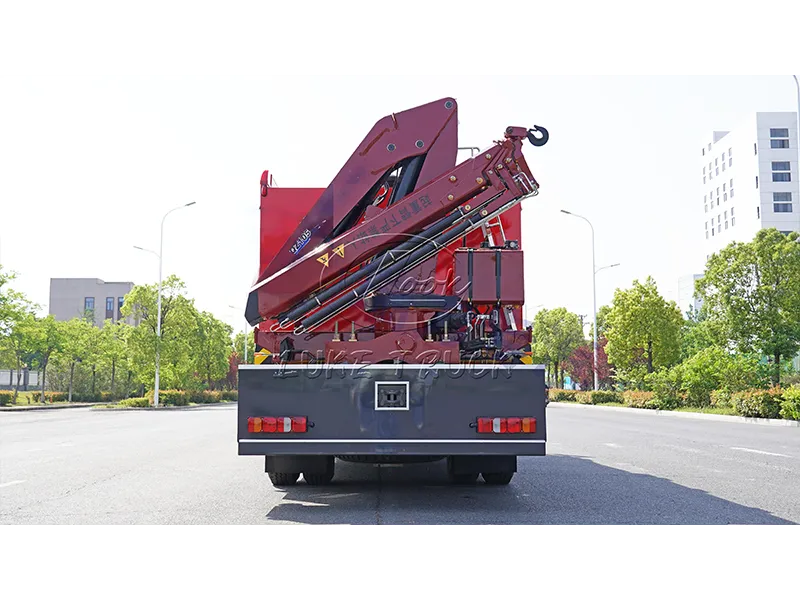

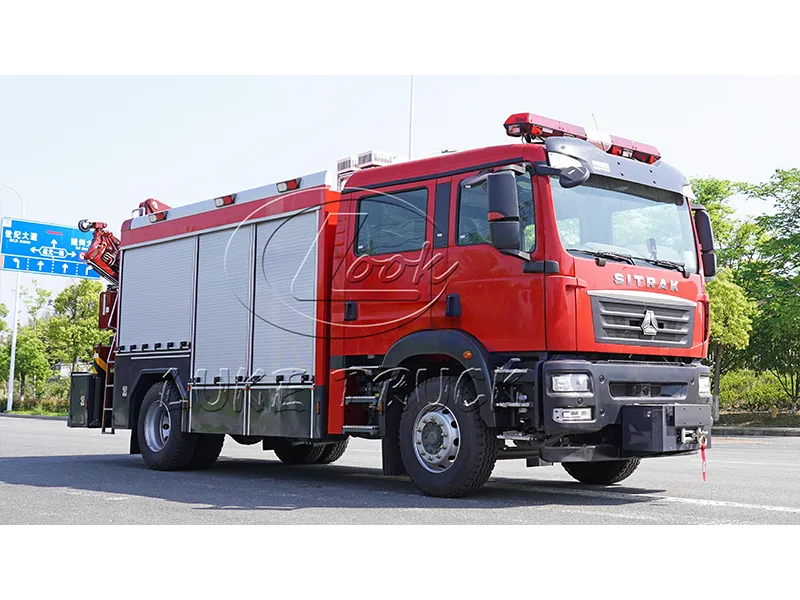

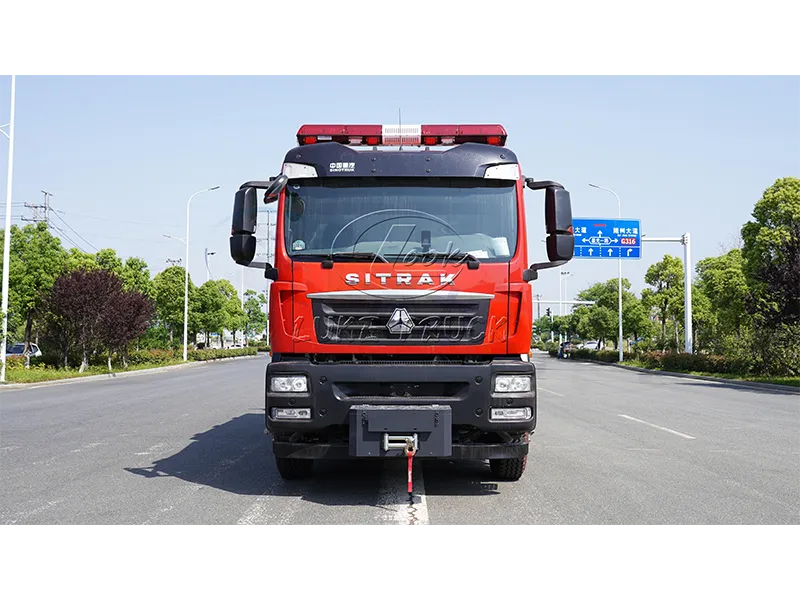

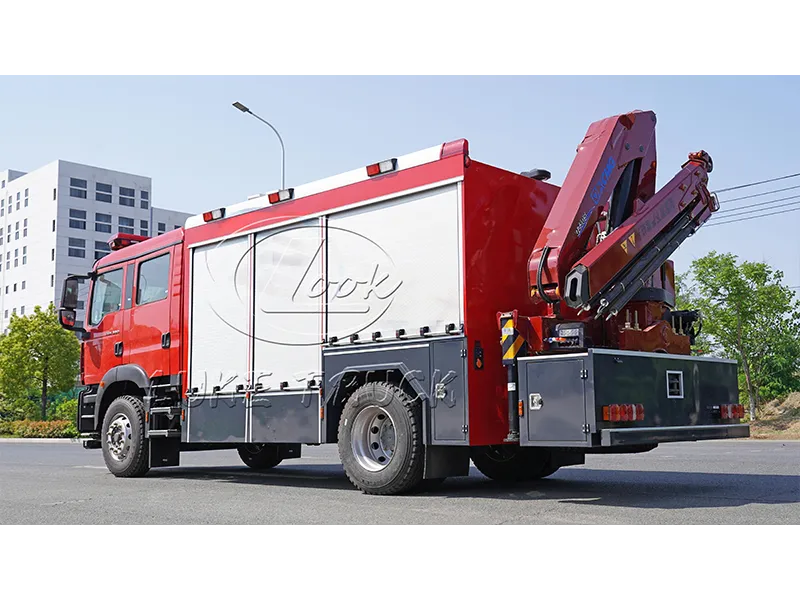

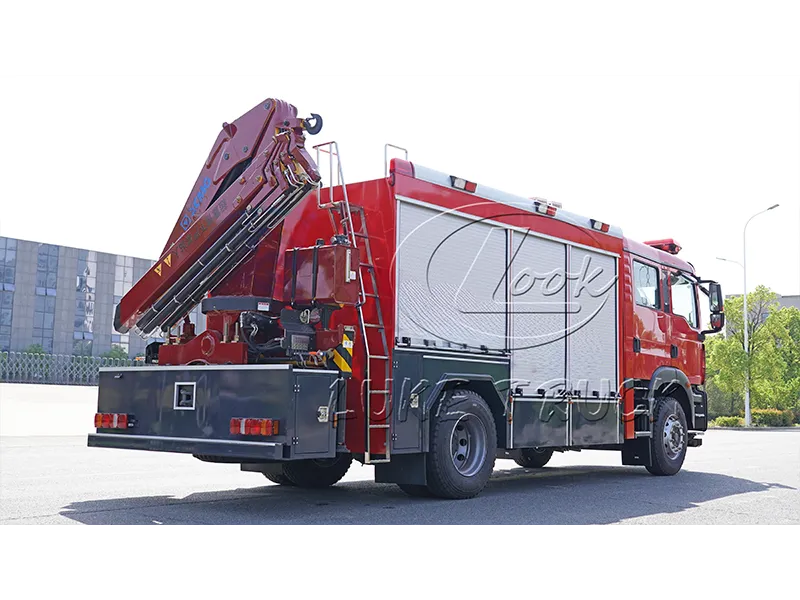

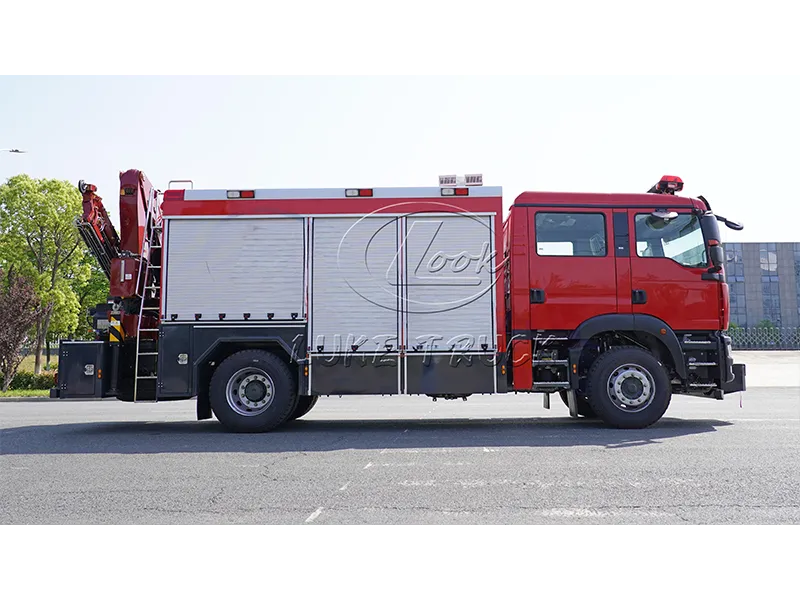

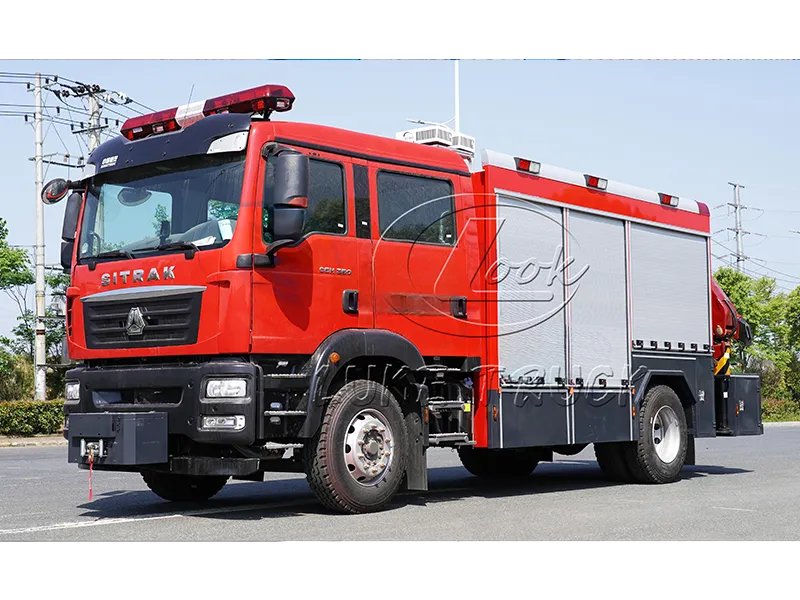

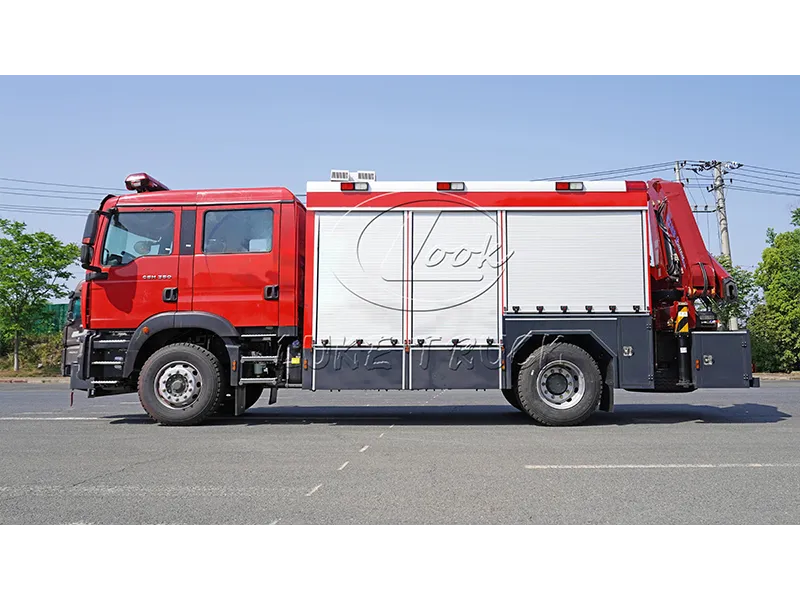

The Sinotruk HOWO Emergency Rescue Fire Truck is a multifunctional, integrated rescue platform built upon a heavy-duty specialized chassis. It incorporates a comprehensive suite of rescue capabilities—including lifting, towing, power generation, illumination, forcible entry, leak sealing, and reconnaissance—making it a core piece of emergency equipment for specialized firefighting operations, earthquake response, traffic accidents, and various other disaster scenarios. It is designed to handle a full spectrum of emergency missions, ranging from lifting and hoisting heavy obstacles and towing disabled vehicles to providing site illumination for night operations, supplying emergency power for forcible entry tools, and conducting comprehensive rescue operations in the aftermath of earthquakes.
| Sinotruk HOWO Emergency Rescue and Firefighting Vehicle: Technical Specifications | |||
| Item | Specification | Item | Specification |
| Brand | MP | Overall Dimensions (mm) | 8980×2510×3550 |
| Product Name | Rescue Fire Truck | Model | QY5130TXFJY162/SK6A |
| Total Mass (kg) | 13000 | Curb Weight (kg) | 12550 |
| Seating Capacity | 3+4 | Wheelbase (mm) | 5000 |
| Approach/Departure Angle (°) | 16/11 | Front/Rear Overhang (mm) | 1450/2410 |
| Axle Load (kg) | 5250/7750 | Maximum Speed (km/h) | 100 |
| Only 295/80R22.5 tires are selected. Rear protective device material: Q235A; cross-sectional dimensions: 80 × 120 mm; connection method to vehicle: bolted; ground clearance of rear protection: 465 mm; forward extension: 420 mm. The EBS manufacturer is ZF Commercial Vehicle Control Systems (Qingdao) Co., Ltd., and the model is EBS3. The main specialized equipment includes a truck-mounted crane, a winch, and a lighting system. | |||
| Chassis Technical Specifications | |||
| Chassis Model | ZZ5206N471GF5 | Tire Specifications | 315/80R22.5 |
| Brand | SITRAK | Emission Standard | GB17691-2018 China National VI |
| Number of Axles | 2 | Number of Tires | 6 |
| Leaf Spring Configuration | 2/3+2,3/3+2,3/9+8,11/9+8,4/5 | Front Track Width (mm) | 1998,2035 |
| Fuel Type | Diesel | Rear Track (mm) | 1850 |
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
| MC07H.35P-61 | China National Heavy Duty Truck Group Co., Ltd. | 7360 | 258 |
