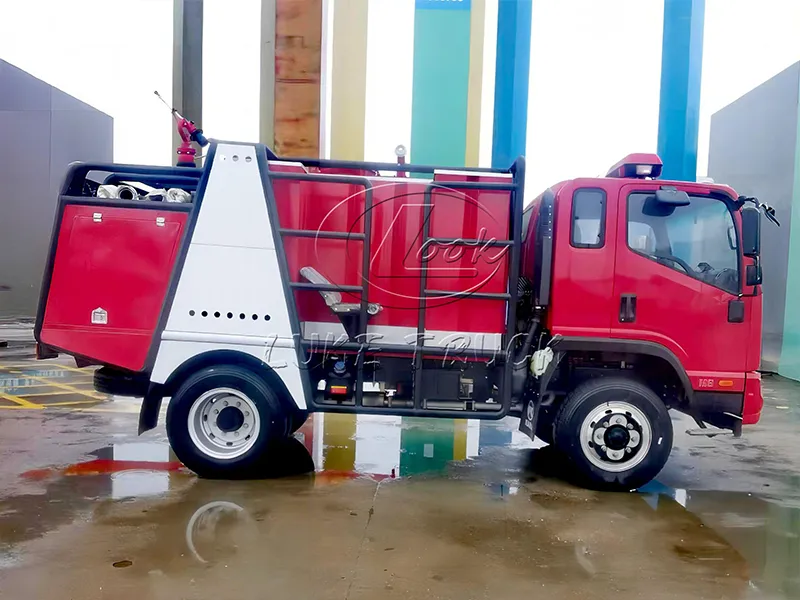

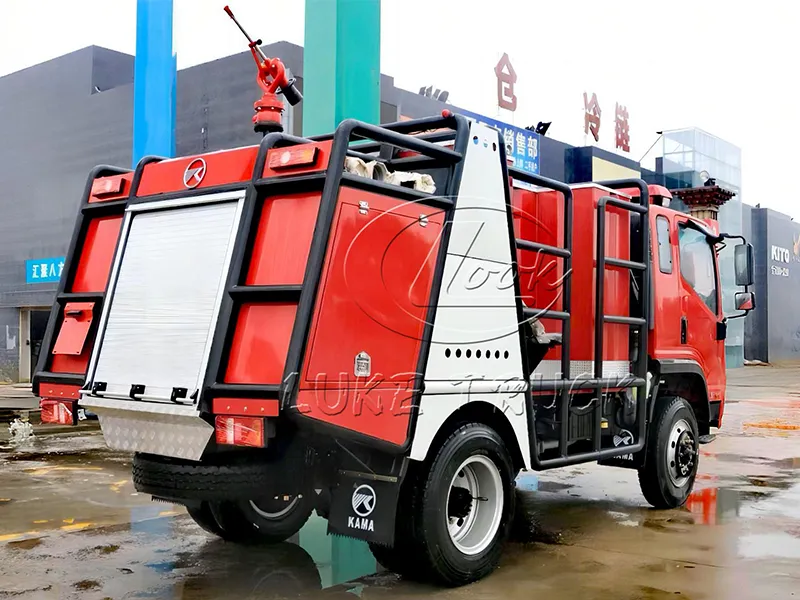

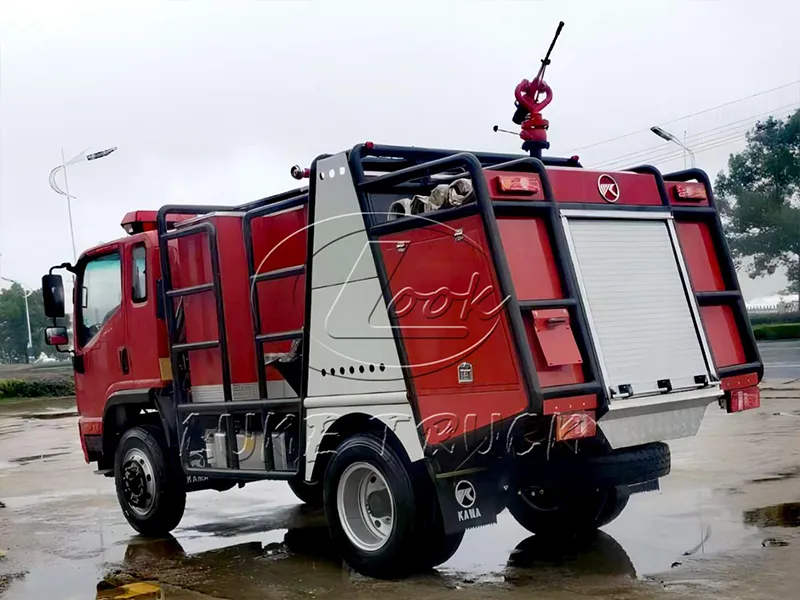

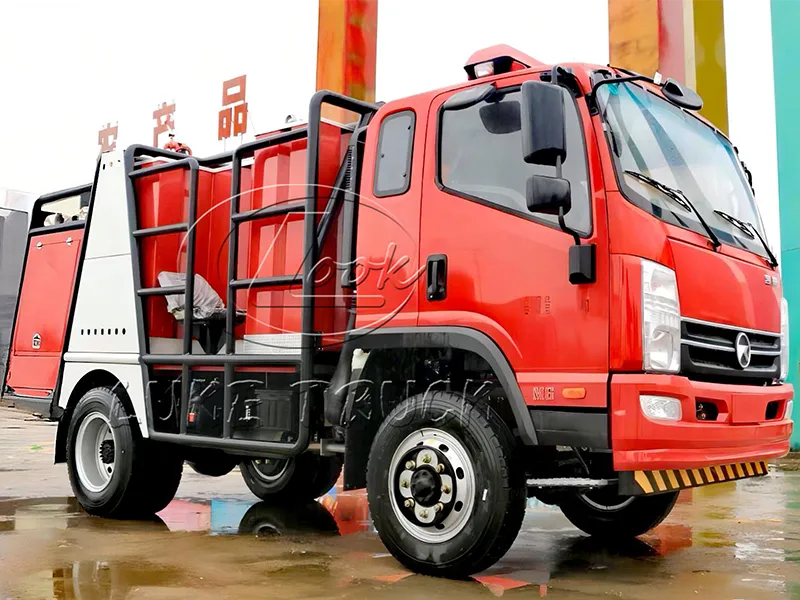

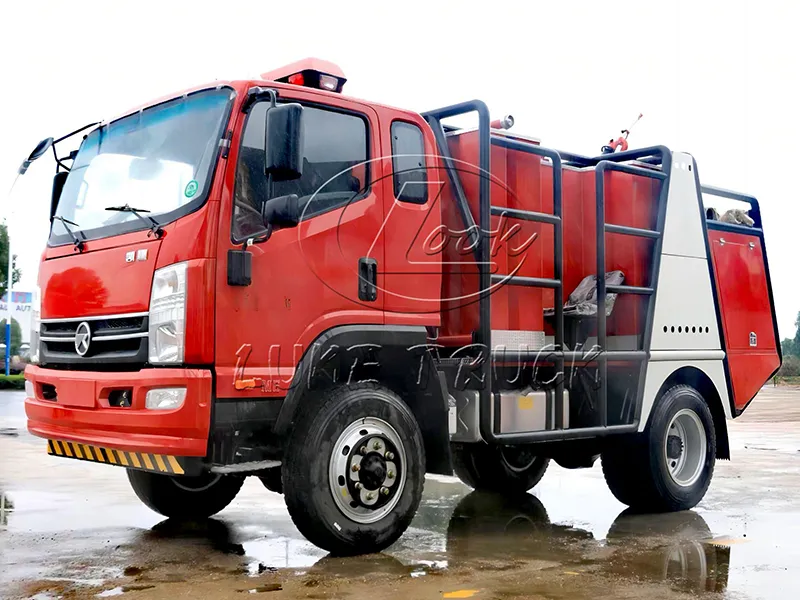

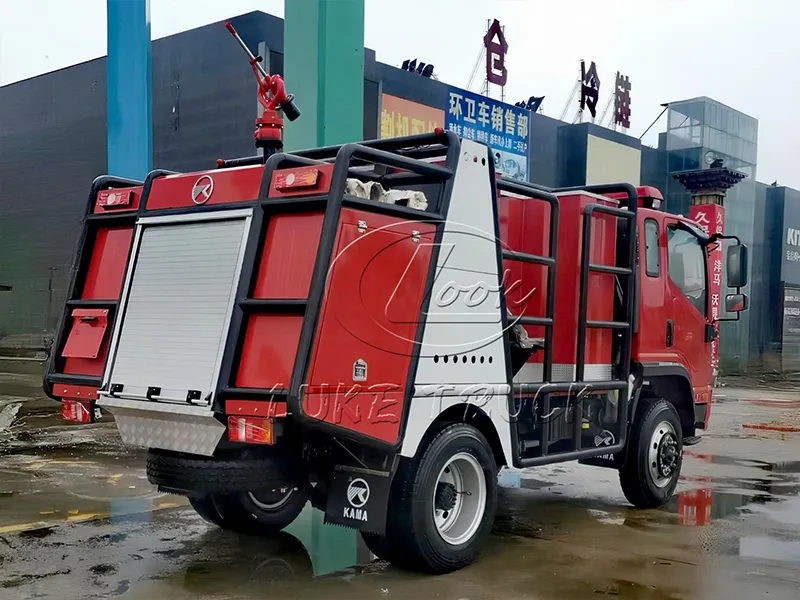

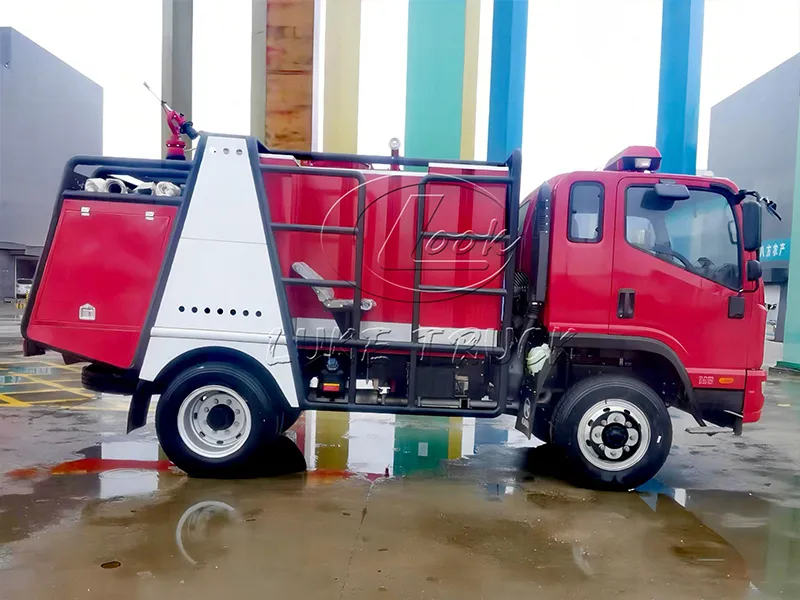

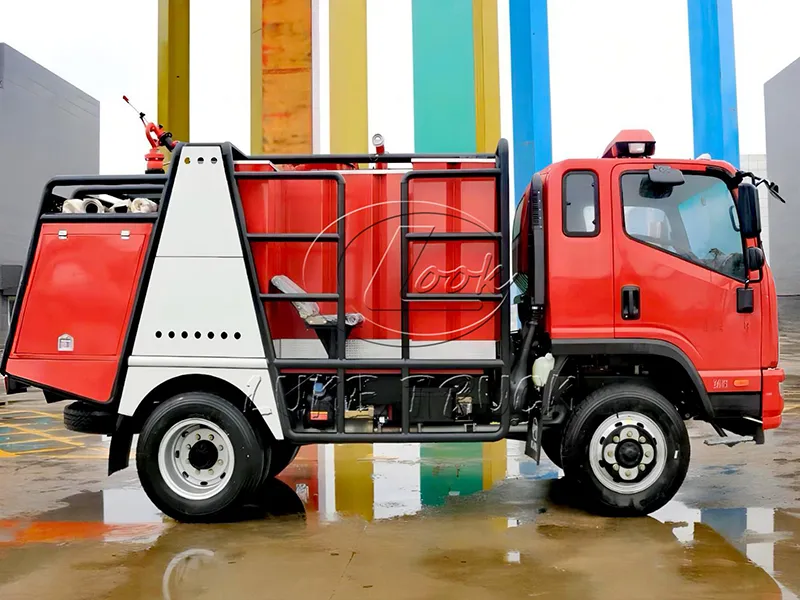

The KAMA Fire Sprinkler Truck is a multi-functional specialized vehicle built upon a light-duty truck chassis, seamlessly integrating firefighting capabilities with municipal sprinkling functions. Its core strengths lie in its "dual-purpose utility, efficient emergency response, and economic practicality." Key specifications include a Model 65CWY-40 fire pump—featuring a flow rate of 40 L/s and a head of 110 meters—and a 360-degree rotatable fire monitor capable of delivering both direct streams and mist sprays with a range of 50 to 80 meters. This vehicle serves to more effectively safeguard the safety of residents' lives and maintain social order, finding widespread application in municipal operations, industrial parks, rural townships, and similar settings.
| KAMA Water Tank Fire Truck — Technical Specifications | |||
| Item | Specification | Item | Specification |
| Brand | MP | Curb Weight (kg) | 4500 |
| Product Name | Water Tank Fire Truck | Model | QY5072GXFSG25 |
| Total Mass (kg) | 7135 | Tank Volume (m3) | 2.26 |
| Rated Payload (kg) | 2260 | Overall Dimensions (mm) | 6350×2020×2860 |
| Seating Capacity | 2+3 | Maximum Fifth Wheel Load (kg) | / |
| Approach/Departure Angle (°) | 19/14 | Front/Rear Overhang (mm) | 1125/1795 |
| Axle Load (kg) | 2440/4695 | Maximum Speed (km/h) | 100 |
| ABS Model: CM4XL-4S/4M; Manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. Water Tank Capacity: 2.260 cubic meters; Water Tank Dimensions: 2000 × 1050 × 1125 (mm). Features an integral side protection structure. Rear Underrun Protection Device: Material—Q235A; Cross-sectional Dimensions—100 × 100 (mm); Bolted connection; Ground Clearance—400 mm. Rear Extension: 70 mm. Key specialized equipment includes a fire pump and a fire monitor. | |||
| Chassis Technical Specifications | |||
| Item | Specification | Item | Specification |
| Chassis Model | KMC1072A336S6 | Wheelbase (mm) | 3360 |
| Brand | KAMA | Manufacturer | Shandong KAMA Automobile Company |
| Number of Axles | 2 | Number of Tires | 6 |
| Tire Specifications | 7.00R16LT 14PR | Emission Standard | GB17691-2018 China National VI |
| Leaf Spring Configuration | 7/9+5,3/6+5,3/5+3,9/8+4 | Front Track (mm) | 1500 |
| Fuel Type | Diesel | Rear Track (mm) | 1555 |
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
| CA4DB1-13E6 | China First Automobile Group Co.Ltd. | 2207 | 95 |
