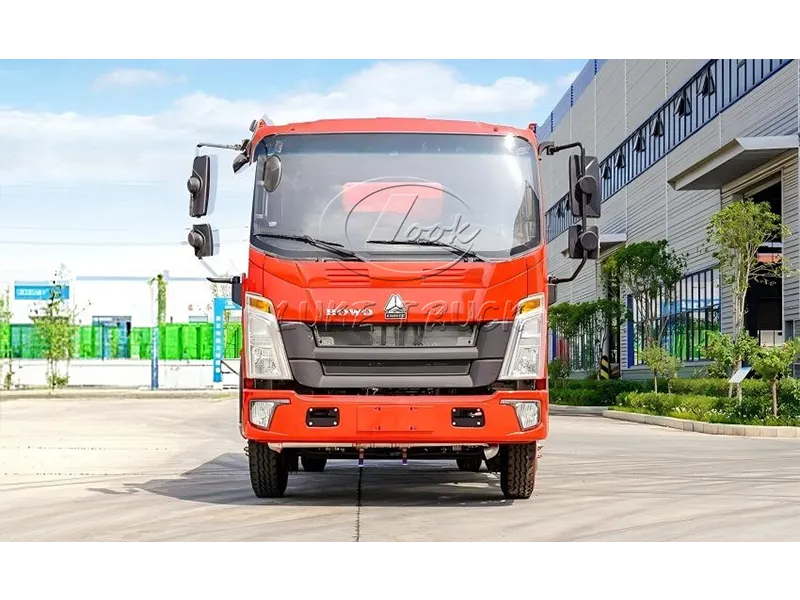

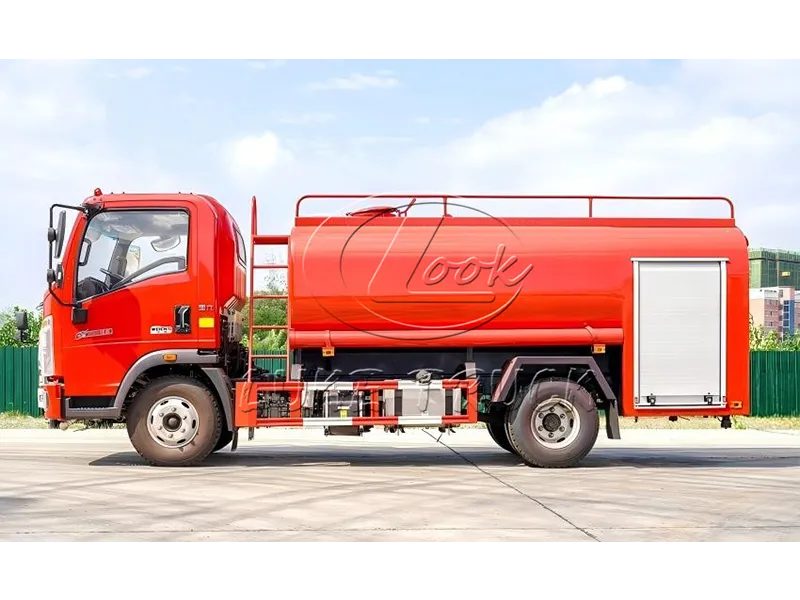

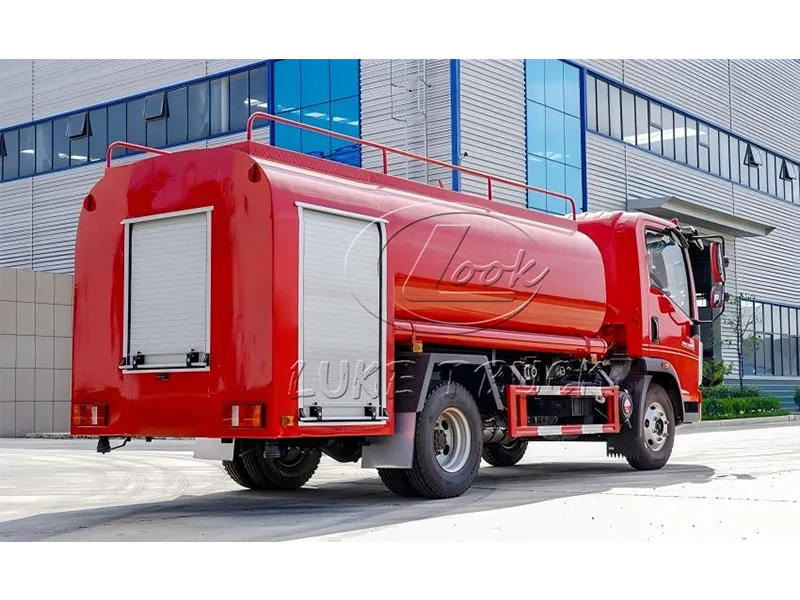

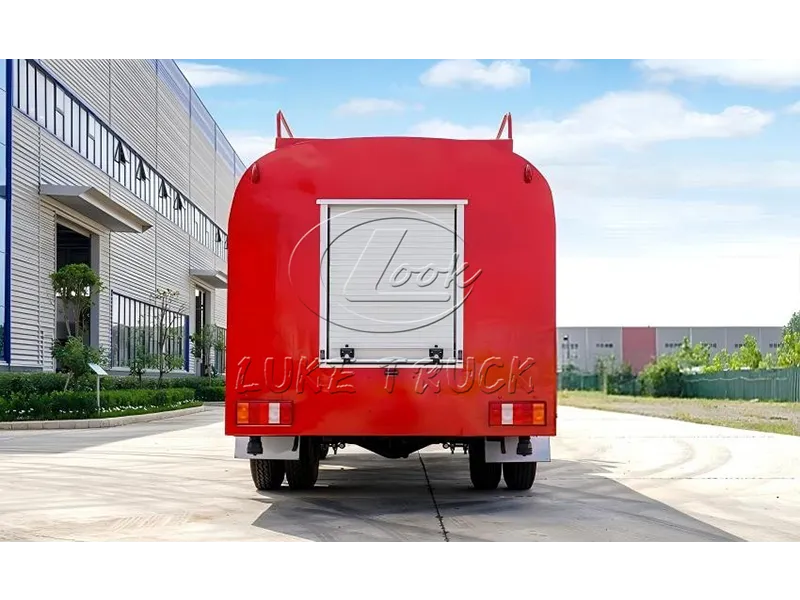

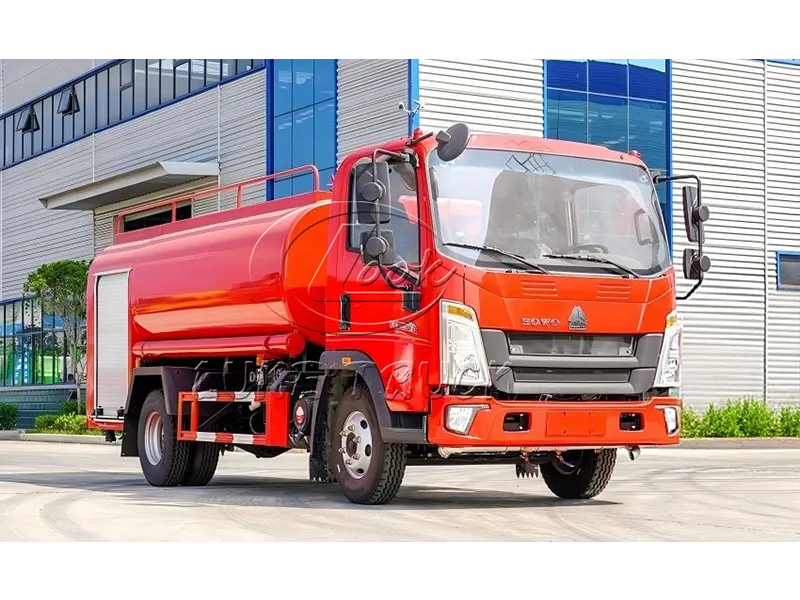

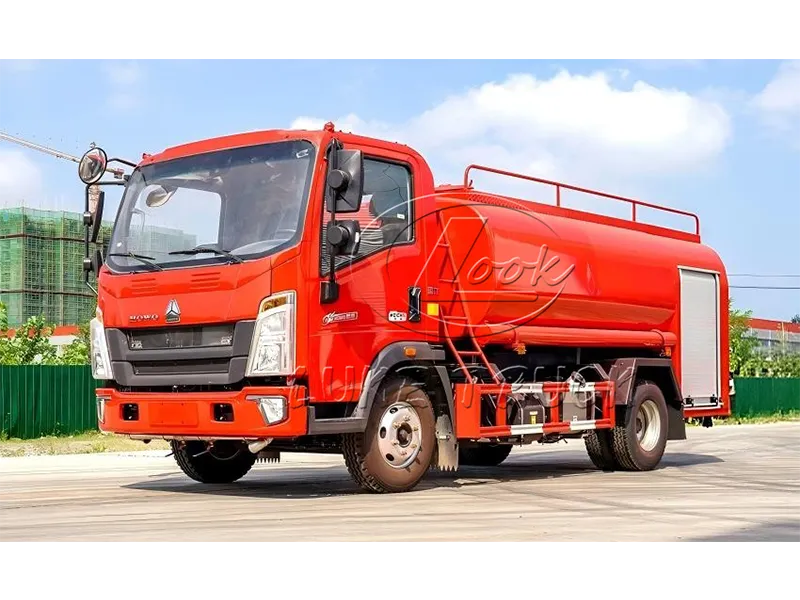

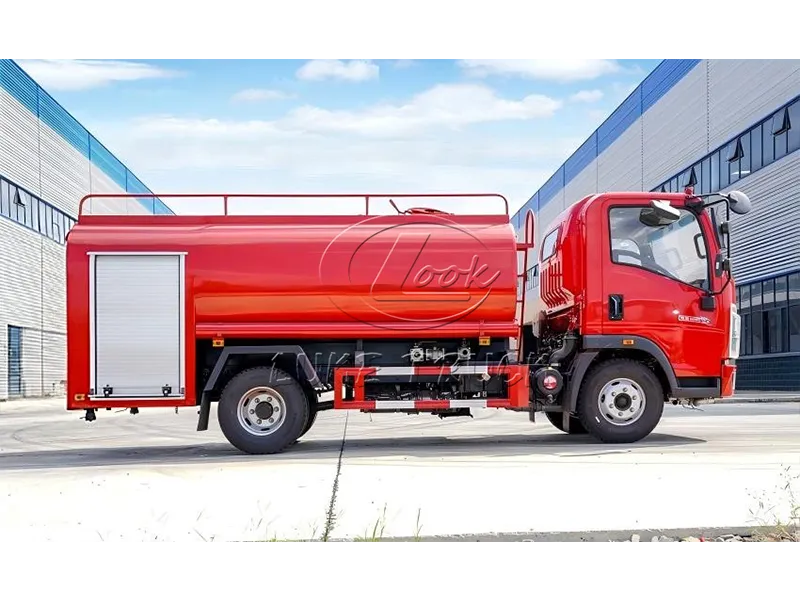

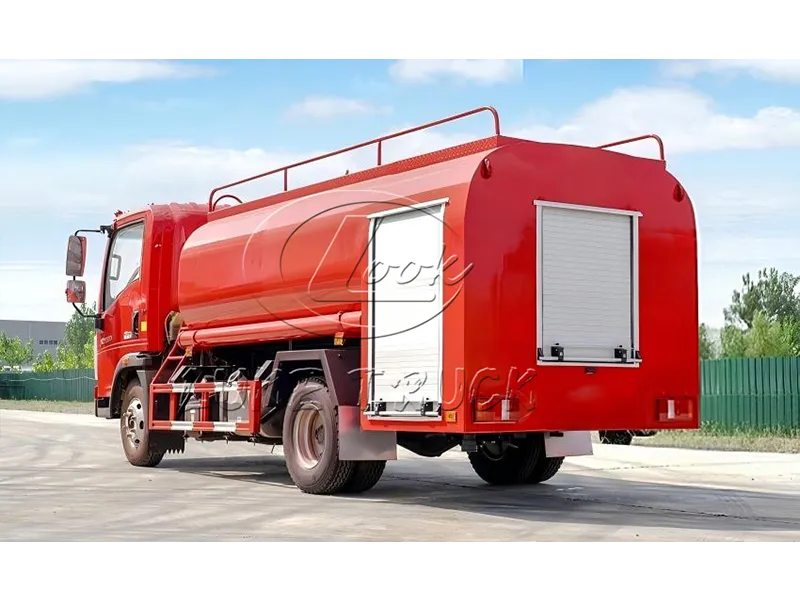

The CNHTC Hanjiang Fire Sprinkler Truck is a multi-functional specialized vehicle built upon a medium-duty truck chassis, seamlessly integrating fire suppression and sanitation sprinkling capabilities. Its core features emphasize "dual-purpose utility, efficient emergency response, and practical economy." Key specifications include a Model 65CWY-40 fire pump with a flow rate of 40 L/s and a head of 110 meters; a 360-degree rotating fire monitor capable of both direct stream and spray modes; and a projection range of 50 to 80 meters. This vehicle is widely deployed across various settings, including municipal areas, industrial parks, and rural townships.
| Sinotruk Hanjian Fire Sprinkler Truck — Vehicle Technical Specifications | |||
| Item | Specification | Item | Specification |
| Brand | MP | Curb Weight (kg) | 9820 |
| Product Name | Greening spray truck | Model | QY5181GPSZZ6T5 |
| Total Mass (kg) | 18000 | Tank Volume (m3) | 12.4 |
| Rated Payload (kg) | 9560,9495,,9755 | Overall Dimensions (mm) | 9180×2500×3100 |
| Approach/Departure Angle (°) | 19/11 | Front/Rear Overhang (mm) | 1430/2300,1430/2400 |
| Axle Load (kg) | 6500/11500 | Maximum Speed (km/h) | 101 |
| The manufacturer and model of the ABS system controller are WABCO (Shanghai) Management Co., Ltd. / 4460046300. EBS is available as an optional feature; the manufacturer and model of the EBS system controller are WABCO (Shanghai) Management Co., Ltd. / EBS3. The side protection is constructed from Q235 material and is attached via bolted connections. The rear protection is constructed from Q235 material, attached via bolted connections, with a cross-sectional dimension (mm) of 120 × 60 and a ground clearance of 450 mm. The external dimensions of the tank (Length × Width × Height) are 4800 × 2400 × 1550 mm; the total tank capacity is 12.4 cubic meters, and the effective tank volume is 11.8 cubic meters. The vehicle's specialized equipment consists of a water tank and a spraying system, designed for landscaping and greening operations in both urban and rural areas. This vehicle modification is applicable only to the 4700 mm wheelbase configuration. | |||
| Chassis Technical Specifications | |||
| Chassis Model | ZZ1187K501GF1 | Tire Specifications | 295/80R22.5 18PR |
| Brand | HOWO | Wheelbase (mm) | 4700 |
| Number of Axles | 2 | Number of Tires | 6 |
| Leaf Spring Configuration | 11/9+8 | Front Track Width (mm) | 2035 |
| Fuel Type | Diesel | Rear Track (mm) | 1880 |
| Emission Standard | GB17691-2018 China National VI | ||
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
| WP7H300E62 | Weichai Power Co., Ltd. | 6800 | 221 |
