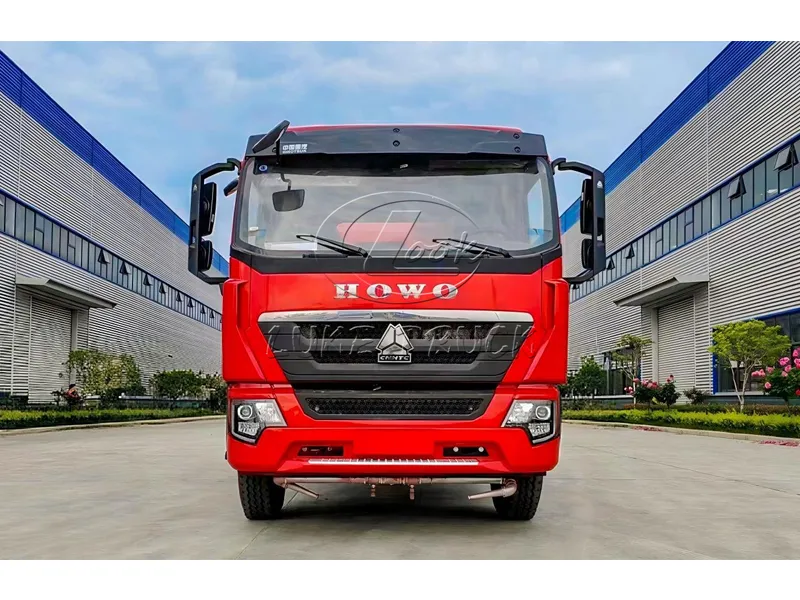

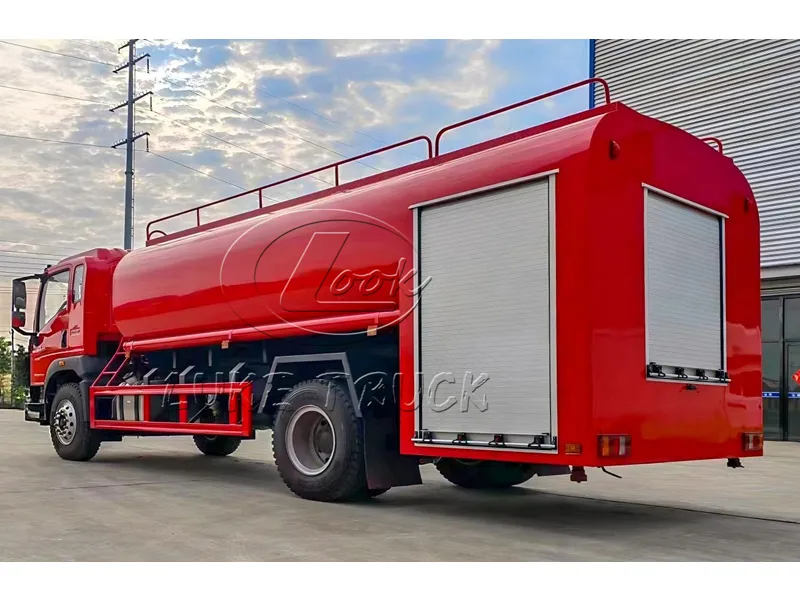

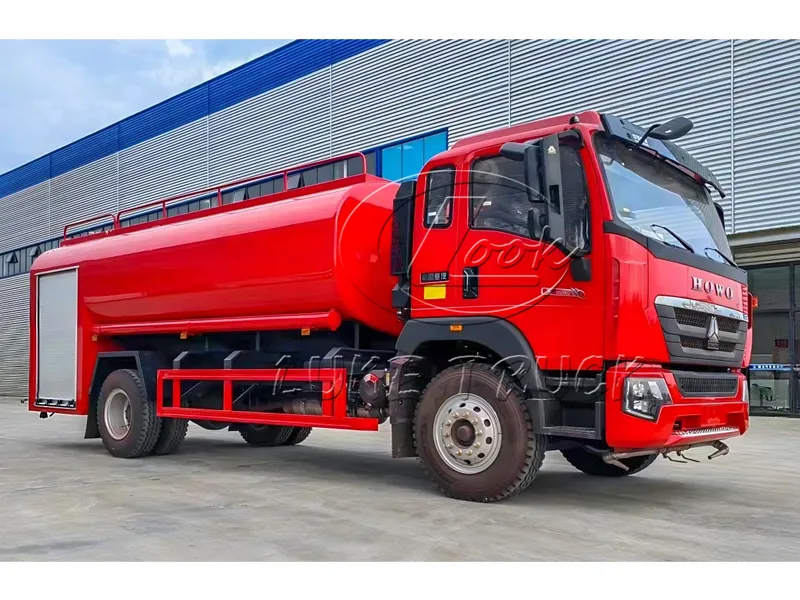

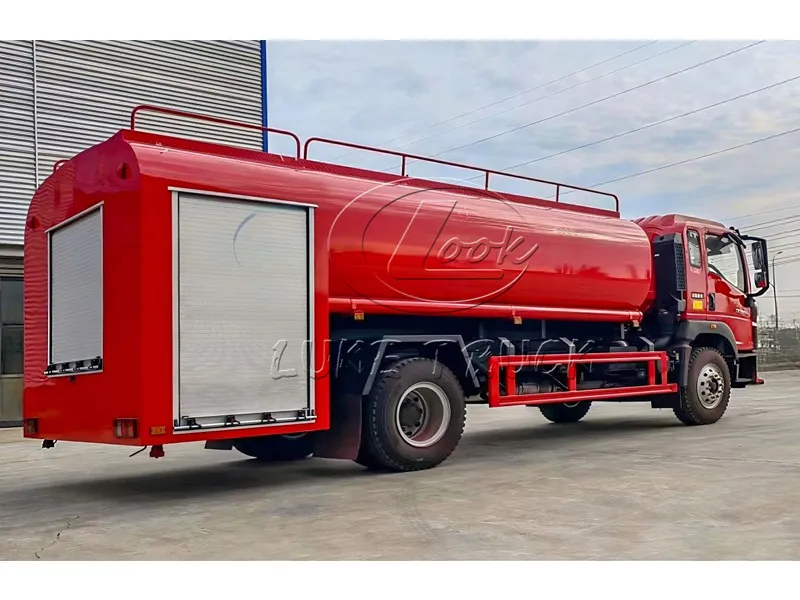

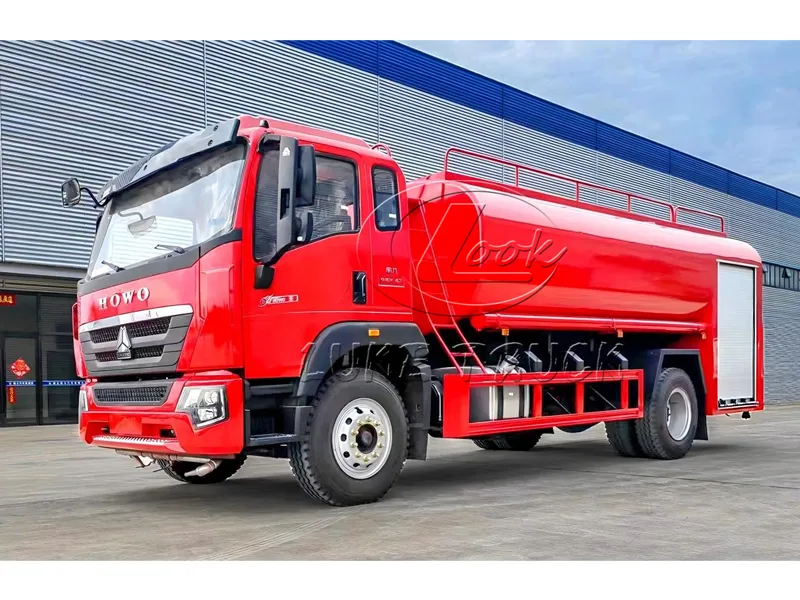

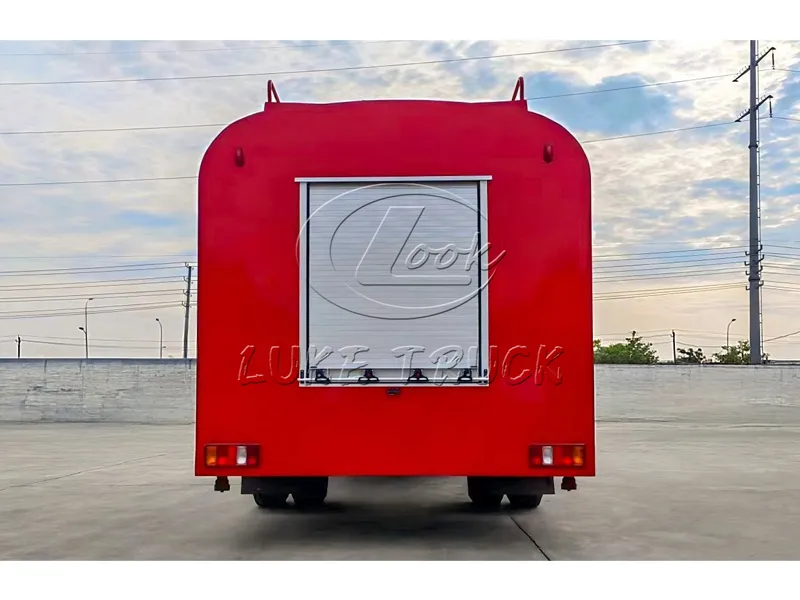

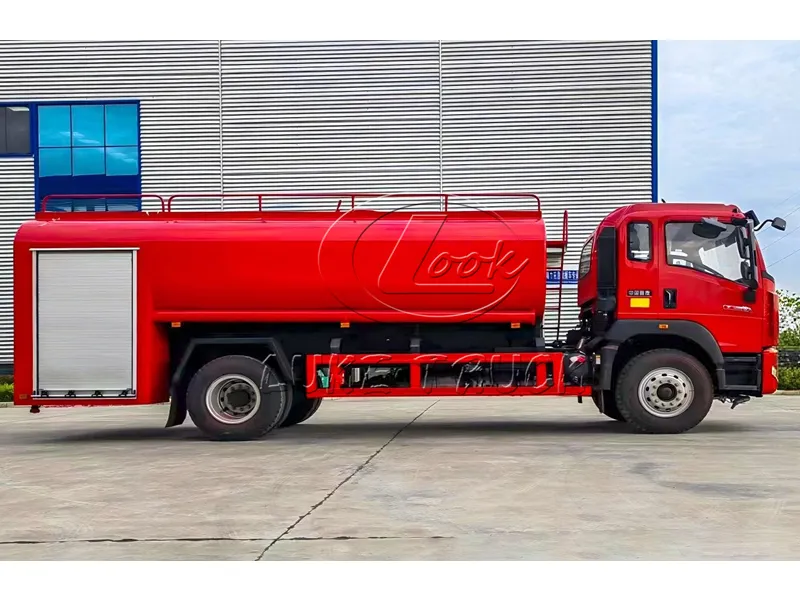

The Sinotruk Howo Fire Sprinkler Truck is a multi-purpose special operation vehicle built on a medium-duty truck chassis, integrating fire suppression and sanitation sprinkling functions. It features dual-purpose design, efficient emergency response, and cost-effectiveness. Equipped with a 65CWY-40 fire pump (flow rate: 40 L/s, head: 110 m) and a 360° rotating fire monitor (direct/spray modes, range: 50–80 meters). It is widely used in municipal, industrial park, township and other scenarios.
Item | Specification | Item | Specification |
Brand | Qiyuan | Overall Dimensions (mm) | 10,280 × 2,530 × 3,720 |
Product Name | Fire Sprinkler Truck | Model | QY5180TXFZM100/HT6 |
Gross Vehicle Weight (kg) | 17,700 | Seating Capacity | 3+4 |
Curb Weight (kg) | 17,250; 17,175 | Cargo Box Dimensions (mm) | N/A |
Approach/Departure Angle (°) | 19/9 | Front/Rear Overhang (mm) | 1,430/3,160; 1,430/3,250 |
Axle Load (kg) | 5,900/11,800; 5,000/12,700 | Maximum Speed (km/h) | 100 |
| Equipped exclusively with 315/80R22.5 tires. Integral side protection structure. Rear protection material: Q235A, cross-section size: 80 × 120 mm, bolted connection to the vehicle, rear protection ground clearance: 440 mm. ABS manufacturer: WABCO (Shanghai) Management Co., Ltd., model: 4460046300. Main special equipment includes a lighting system. Optional EBS: EBS controller manufacturer/model: ZF Commercial Vehicle Systems (Qingdao) Co., Ltd. / EBS3. Optional rear protection ground clearance: 465 mm. Optional different types of lighting systems. | |||
| Chassis Technical Specifications | |||
Item | Specification | Item | Specification |
Chassis Model | ZZ5207TXFV471GF5 | Wheelbase (mm) | 5,600 |
Brand | Howo | Tire Specification | 315/80R22.5 |
Number of Axles | 2 | Number of Tires | 6 |
Leaf Spring Configuration | 11/9+8 | Front Track (mm) | 1,950; 2,035 |
Fuel Type | Diesel | Rear Track (mm) | 1,848; 1,860 |
Emission Standard | GB17691-2018 China National VI | ||
Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
MC07H.35-60 | China National Heavy Duty Truck Group Co., Ltd. | 7,360 | 257 |
