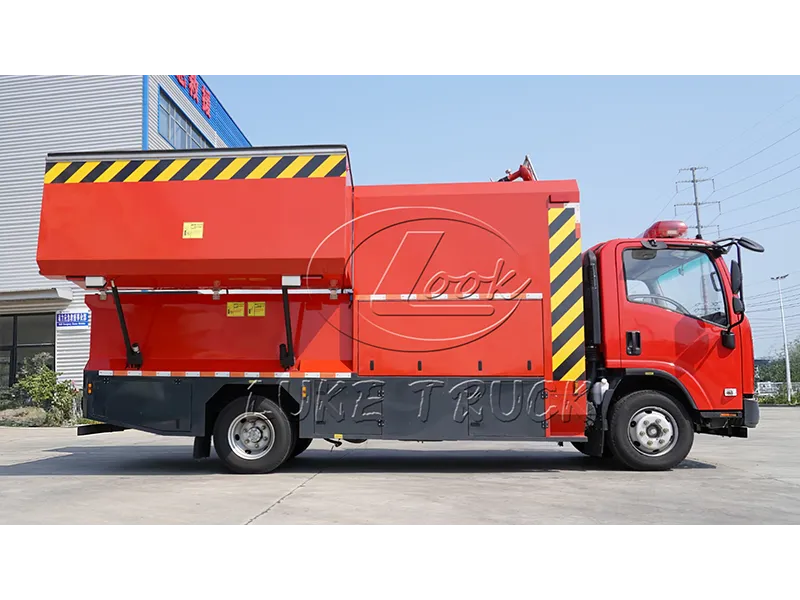

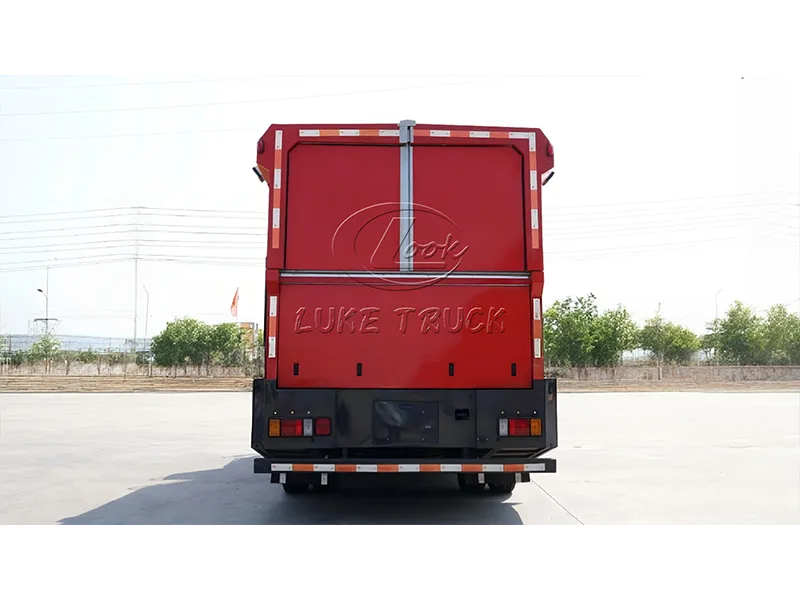

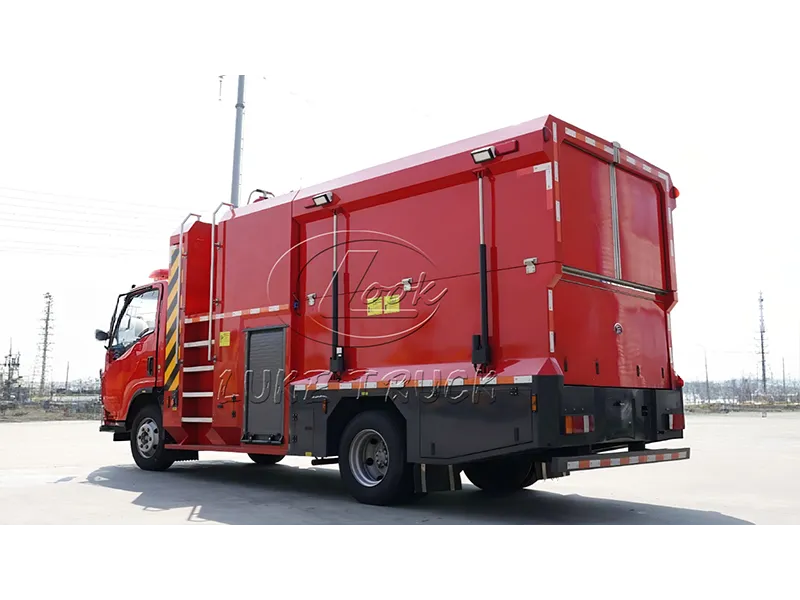

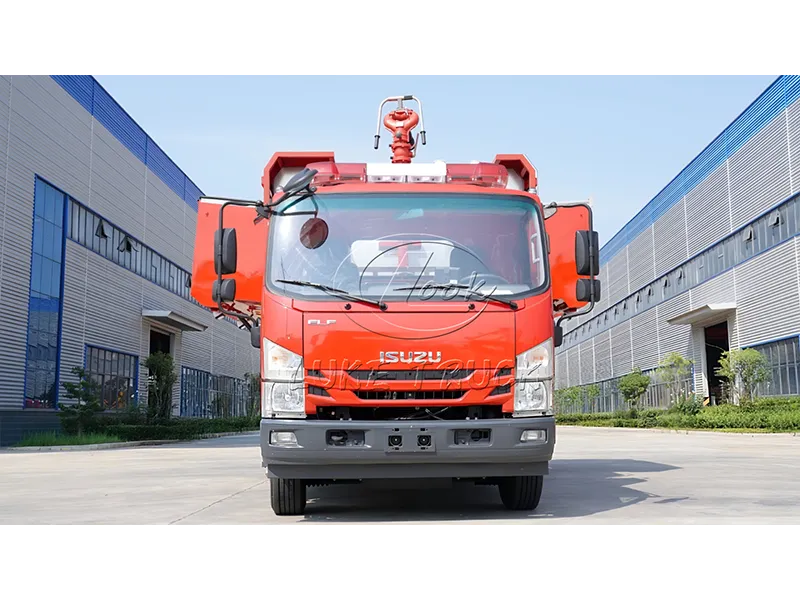

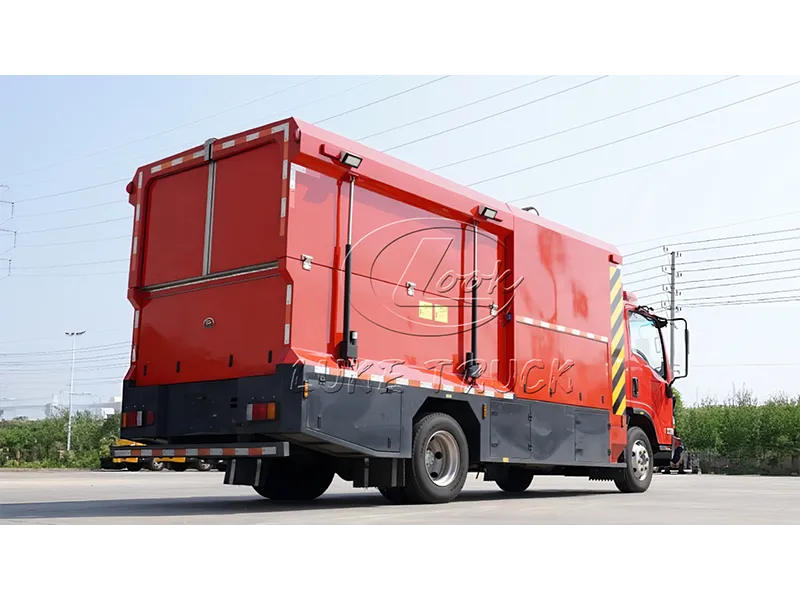

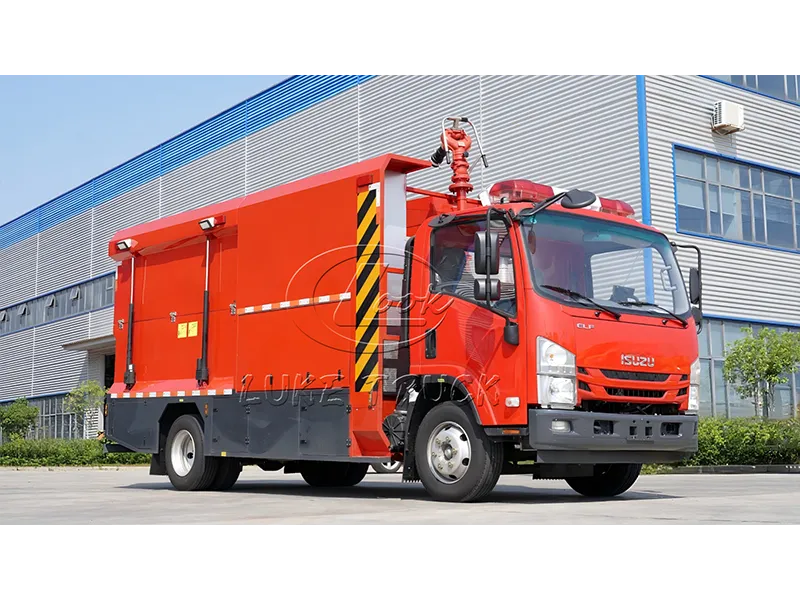

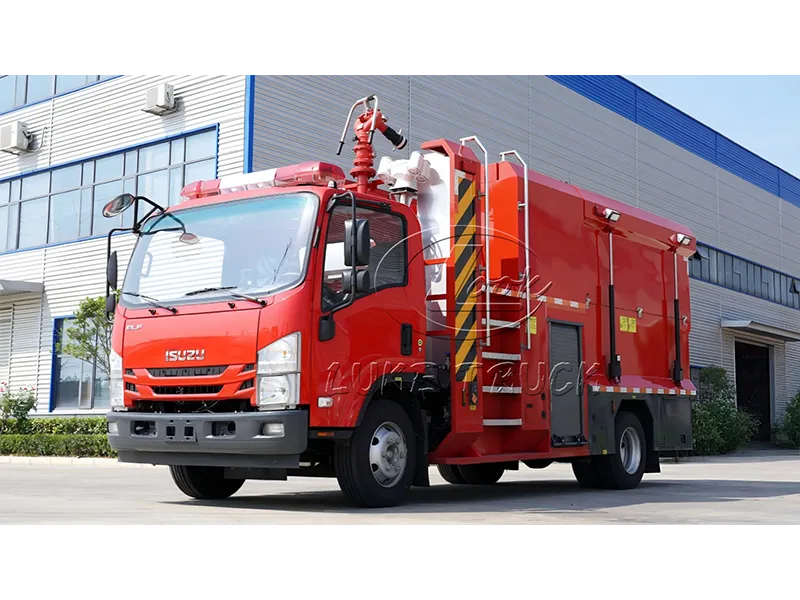

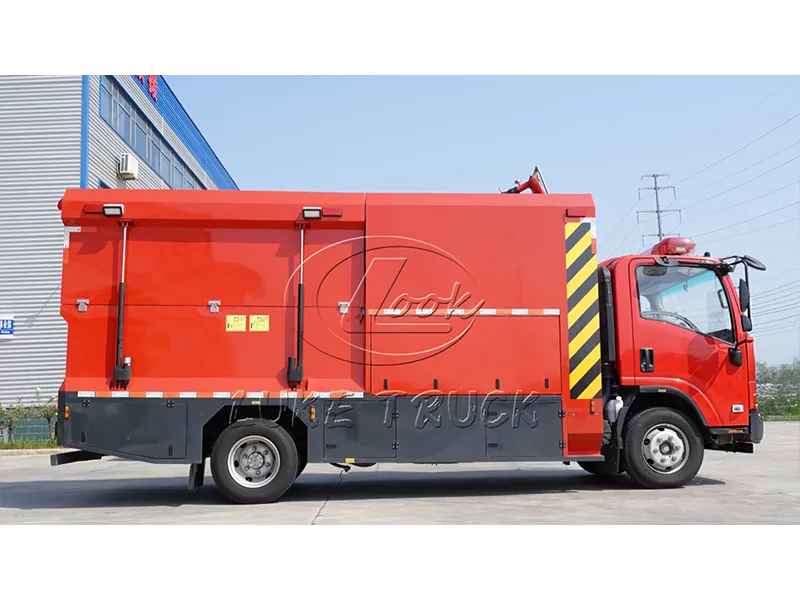

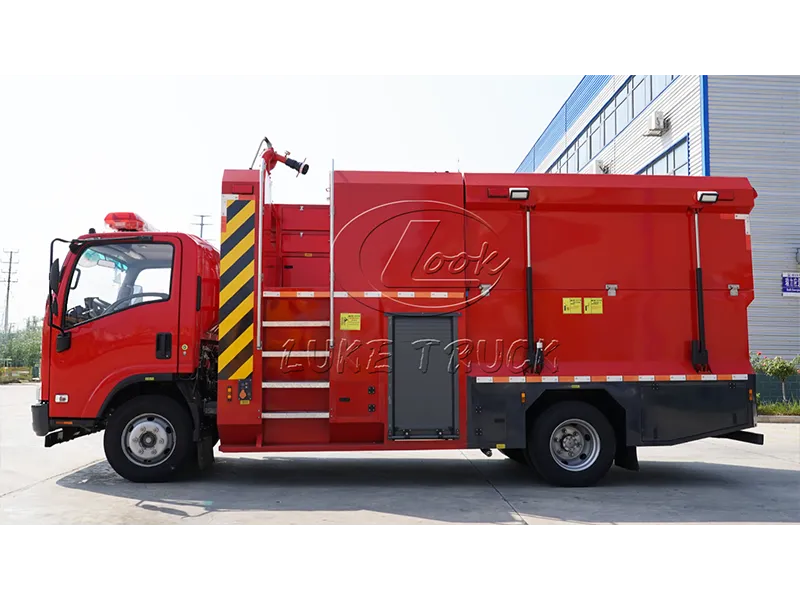

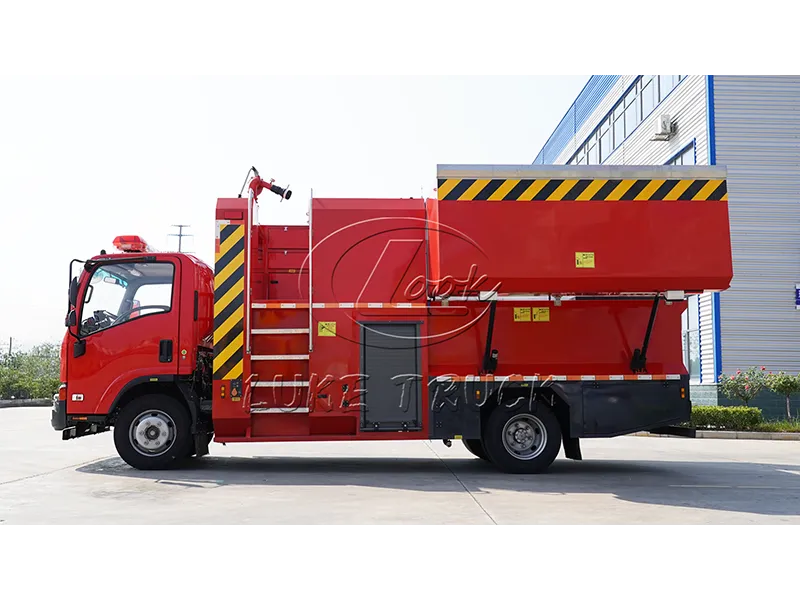

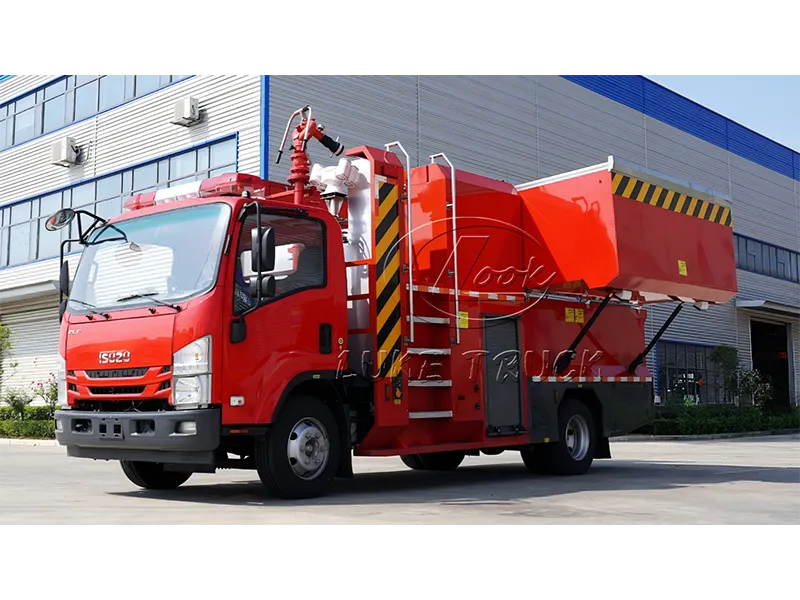

The Isuzu Compressed Air Foam Fire Truck (referred to as the CAFS Fire Truck) is built upon a specialized Iveco chassis and integrates a compressed air foam system. It serves as a medium-sized primary firefighting apparatus designed for use in urban areas, industrial parks, and complex operational environments, balancing agility, high-efficiency fire suppression, and strong adaptability. Its key strengths lie in rapid response, minimal collateral damage, and extensive coverage. By striking an optimal balance between maneuverability, payload capacity, and fire suppression power, it serves as a viable alternative to certain large-scale fire trucks while simultaneously filling critical operational gaps in narrow alleys and areas with height restrictions.
| Isuzu -Equipped Compressed Air Foam Fire Truck — Technical Specifications | |||
| Item | Specification | Item | Specification |
| Brand | MP | Seating Capacity | 2+4 |
| Product Name | Water Tank Fire Truck | Model | QY5200GXFSG80/Q6 |
| Total Mass (kg) | 19800 | Tank Volume (m3) | 8.4 |
| Rated Payload (kg) | 8400 | Overall Dimensions (mm) | Overall Dimensions (mm) |
| Curb Weight (kg) | 10950 | Emission Standard | GB17691-2018 China National VI |
| Approach/Departure Angle (°) | 17/12 | Front/Rear Overhang (mm) | 1370/2380 |
| Axle Load (kg) | 7200/12600 | Maximum Speed (km/h) | 95 |
| Water Tank Capacity: 8.400 cubic meters. The tank features a non-standard, contoured design; the external dimensions of the front section are 1175 × 1300 × 1450 mm, while the external dimensions of the rear section are 1800 × 2460 × 1450 mm. The vehicle is equipped with an integral side protection structure. The rear protective device is constructed from Q235A material, with a cross-sectional dimension (width × height) of 60 × 120 mm; it is attached to the vehicle via bolted connections. The ground clearance of the rear protective device is 482 mm. The ABS system is manufactured by Zhejiang Asia-Pacific Electromechanical Co., Ltd., model APG3550500H1. Key specialized equipment includes a fire pump and a fire monitor. An optional red strobe light is available. | |||
| Chassis Technical Specifications | |||
| Chassis Model | QL5220GXFFMFRY | Chassis Name | Fire Truck Chassis |
| Brand | Isuzu | Manufacturing Enterprise | Qingling Motors Co. Ltd. |
| Number of Axles | 2 | Number of Tires | 4 |
| Wheelbase (mm) | 4500 | Tire Specifications | 385/65R22.5 |
| Leaf Spring Configuration | 7/6+8,7/8+6 | Front Track Width (mm) | 2140 |
| Fuel Type | Diesel | Rear Track (mm) | 1855 |
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
| 6HK1-TCG60 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 7790 | 221 |
