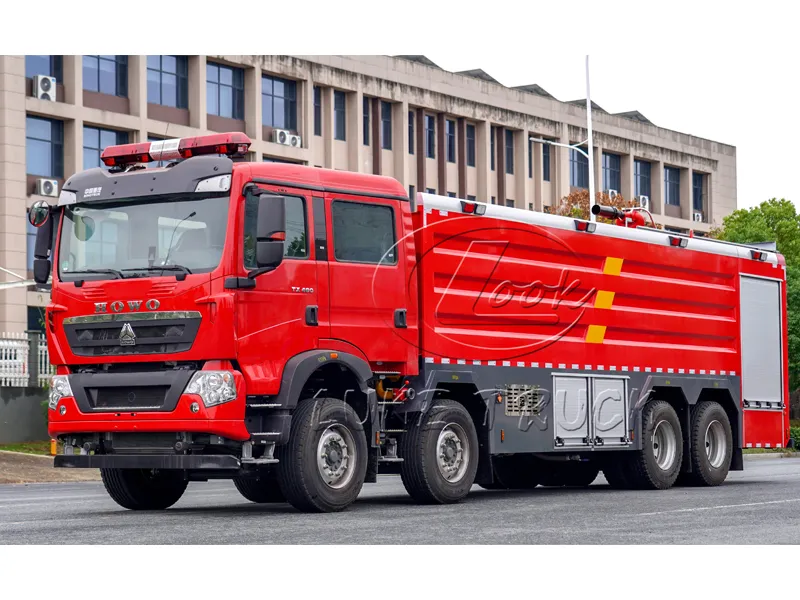

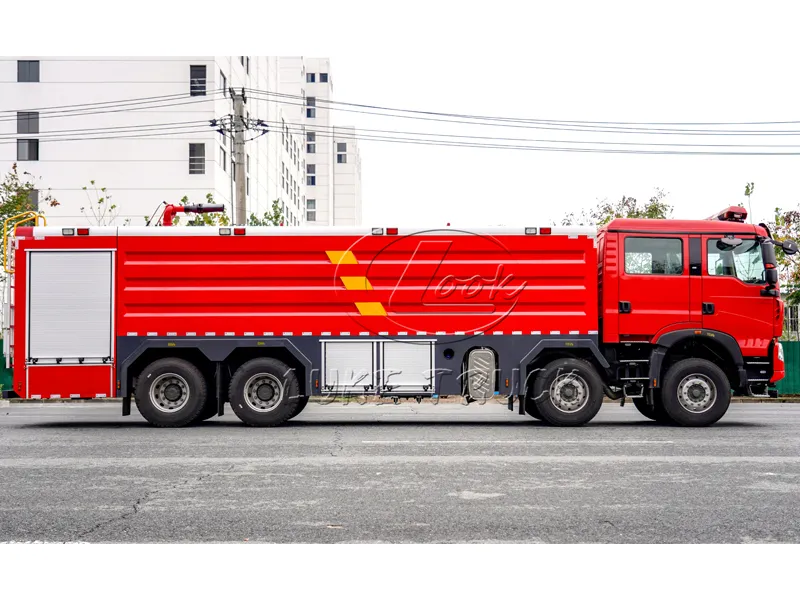

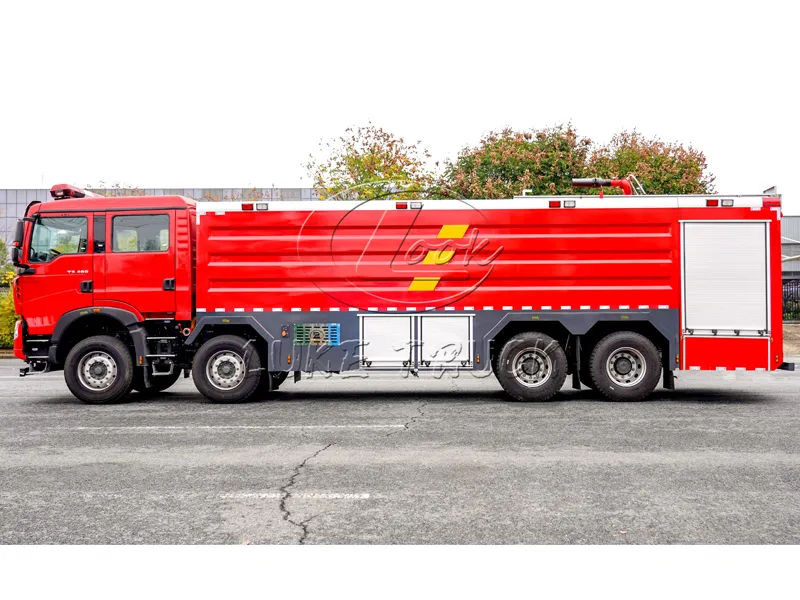

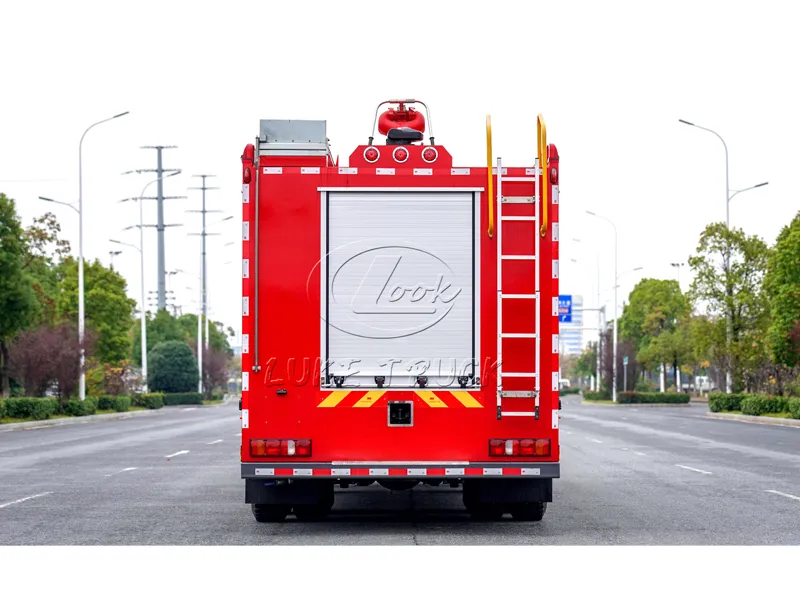

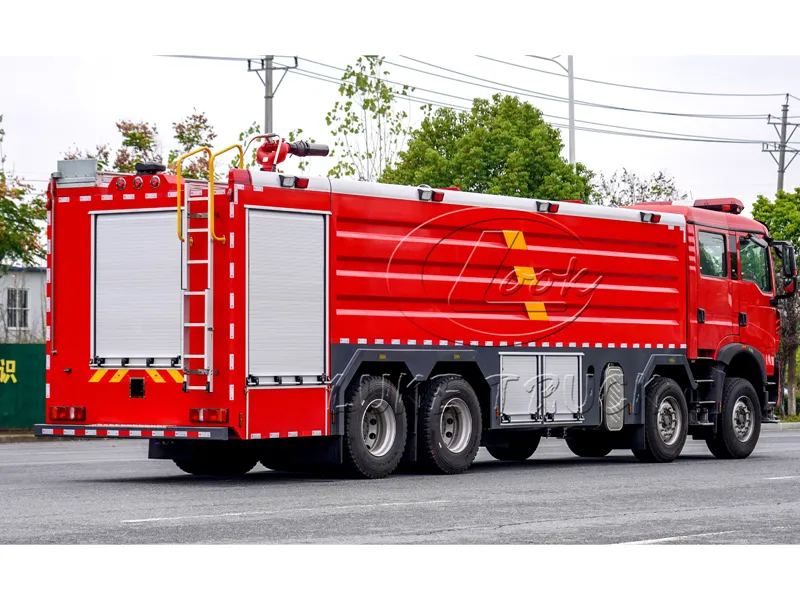

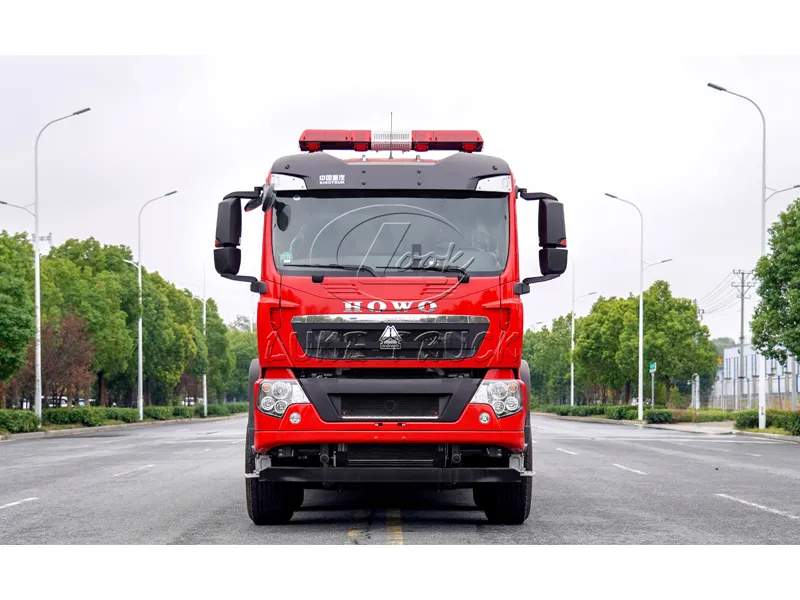

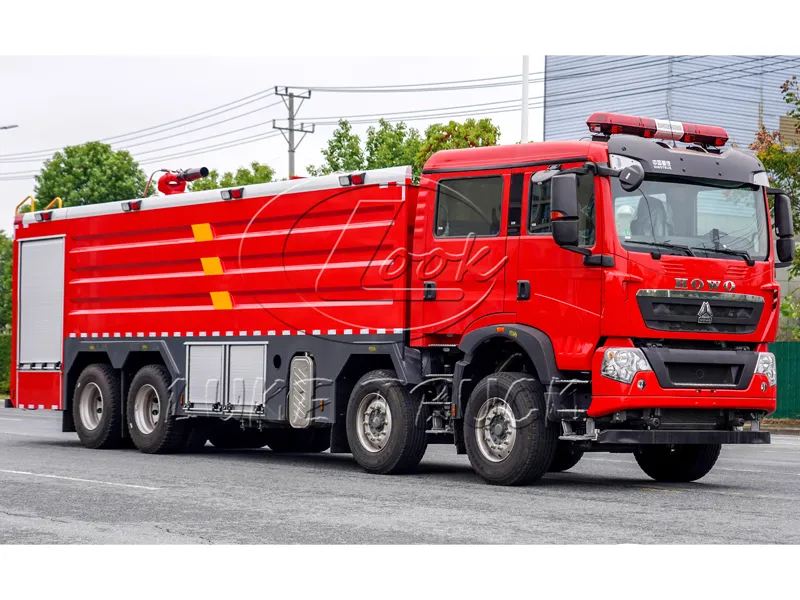

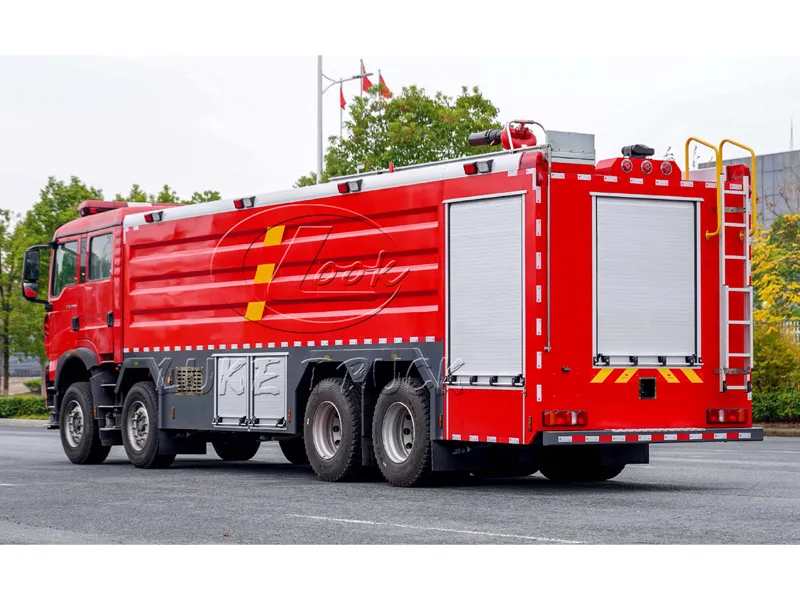

The Sinotruk 25-ton 8×4 Water Tank Fire Truck is a domestically produced heavy-duty main fire truck, designed for large-scale fires, petrochemical plants, ports, and long-distance water supply. It features large water carrying capacity, powerful power, long spraying range, and stable load-bearing. As a 25-ton unit, it eliminates frequent water refilling during prolonged firefighting. The Sinotruk chassis offers reliable load capacity and an extensive service network. The high-performance pump and monitor deliver strong flow, long range, and coverage for high-rise and remote areas. The 8×4 chassis provides excellent stability and passability, suitable for complex road conditions.
Item | Specification | Item | Specification |
Brand | Qiyuan | Curb Weight (kg) | 17,900 |
Product Name | Water Tank Fire Truck | Model | QY5430GXFSG250/HT6 |
Gross Vehicle Weight (kg) | 42,650 | Tank Volume (m³) | 24.600 |
Rated Payload (kg) | 24,600 | Overall Dimensions (mm) | 11,980 × 2,550 × 3,680 |
Cab Seating Capacity | 2 | Wheelbase (mm) | 1,950 + 4,600 + 1,400 |
Approach/Departure Angle (°) | 19/11 | Front/Rear Overhang (mm) | 1,500/2,530 |
Axle Load (kg) | 9,000/8,900/12,550/12,200 | Maximum Speed (km/h) | 95 |
Water tank volume: 24.600 m³; water tank dimensions: 7,540 × 2,390 × 1,410 mm. Integral side protection structure. Rear protection material: Q235A, cross-section size: 120 × 80 mm, bolted connection to the vehicle, rear protection ground clearance: 490 mm. ABS manufacturer: WABCO (Shanghai) Management Co., Ltd., model: 4460046300. Optional EBS: EBS controller manufacturer/model: ZF Commercial Vehicle Systems (Qingdao) Co., Ltd. / EBS3. Main special equipment includes a fire pump and a fire monitor. | |||
Chassis Technical Specifications | |||
Item | Specification | Item | Specification |
Chassis Model | ZZ5447TXFV466MF1 | Chassis Name | Fire Truck Chassis |
Brand | Howo | Tire Specification | 385/65R22.5 / 315/80R22.5 18PR |
Number of Axles | 4 | Number of Tires | 12 |
Emission Standard | GB17691-2018 China National VI | Front Track (mm) | 2,110/2,110 |
Fuel Type | Diesel | Rear Track (mm) | 1,830/1,830; 1,850/1,850 |
Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
MC13H.57-61 | China National Heavy Duty Truck Group Co., Ltd. | 13,020 | 422 |
