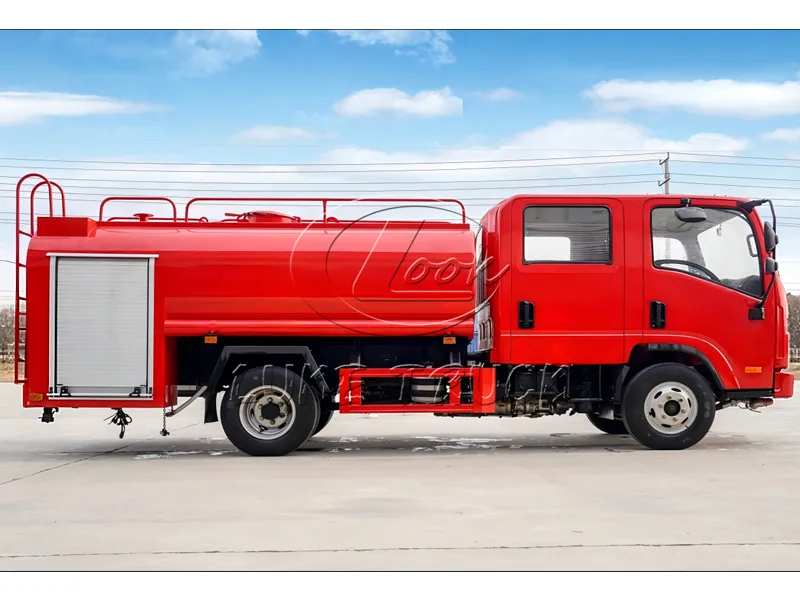

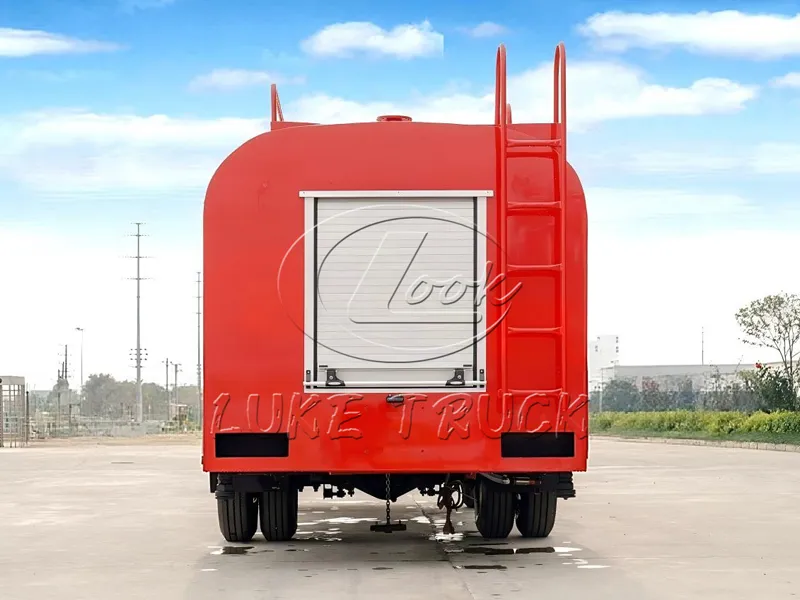

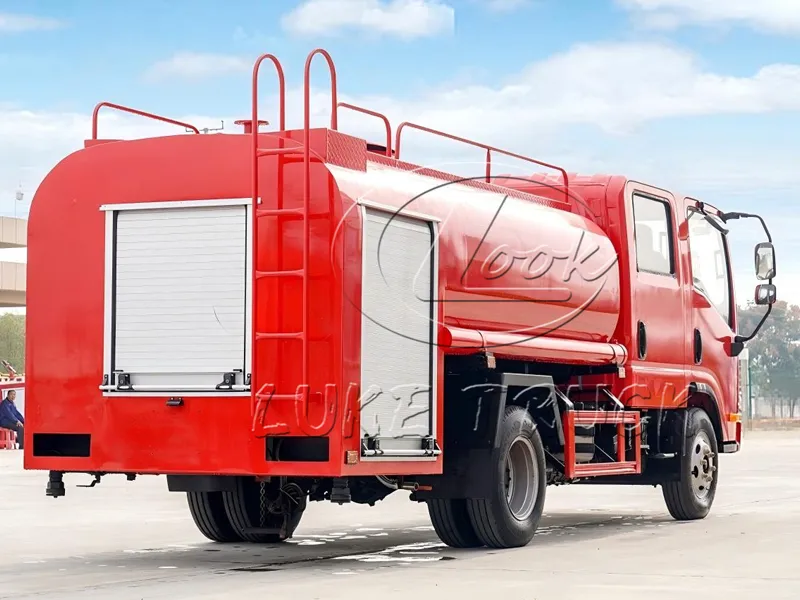

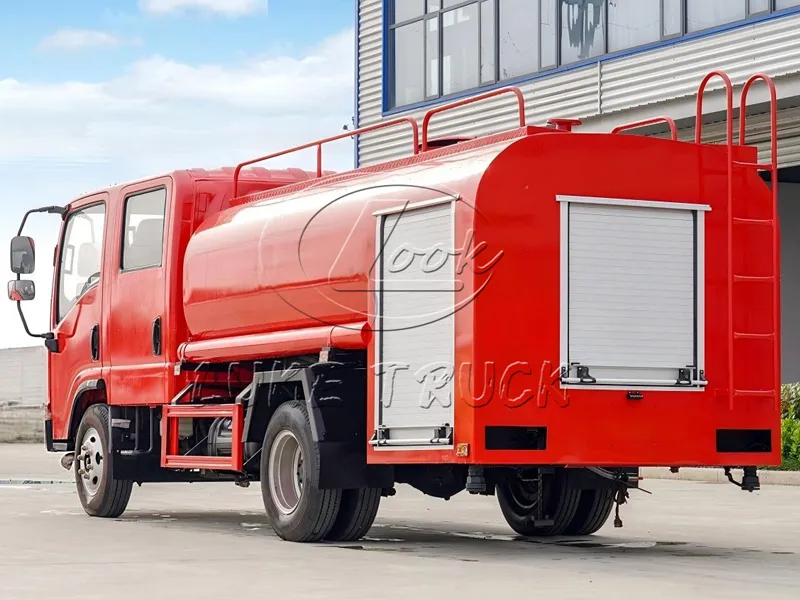

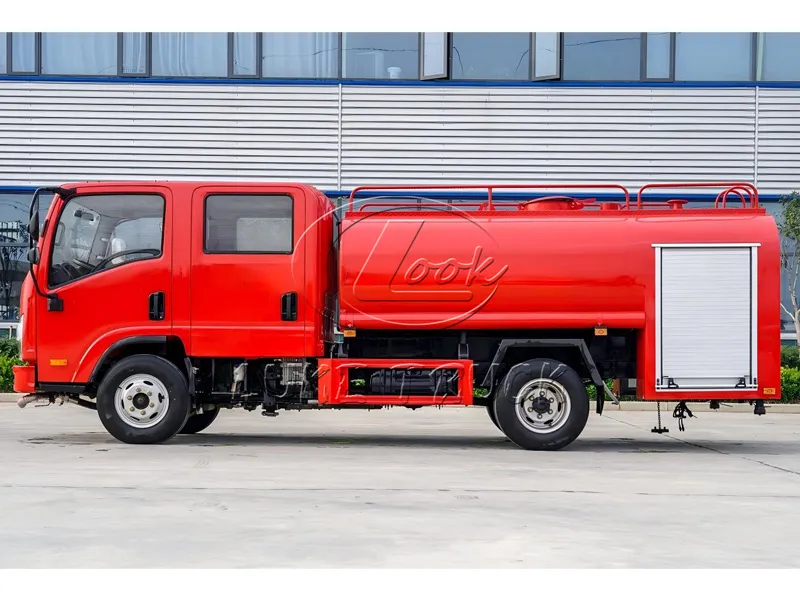

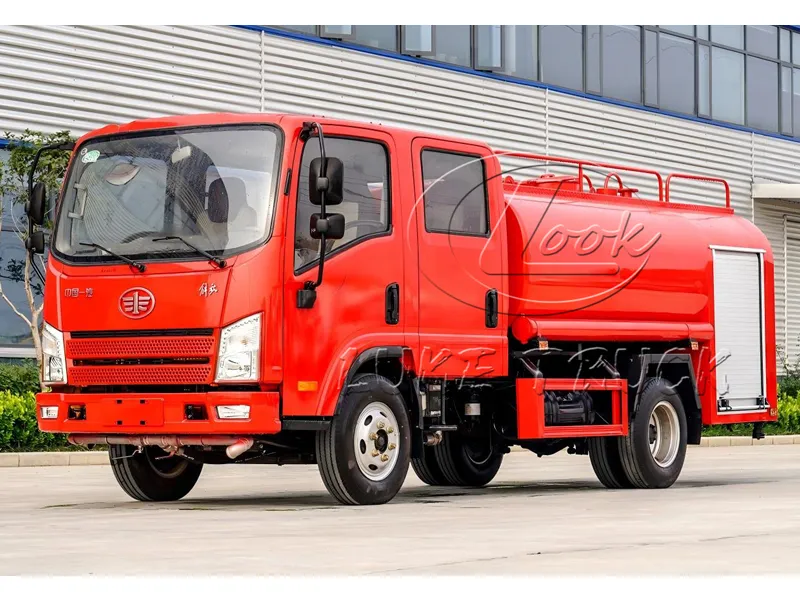

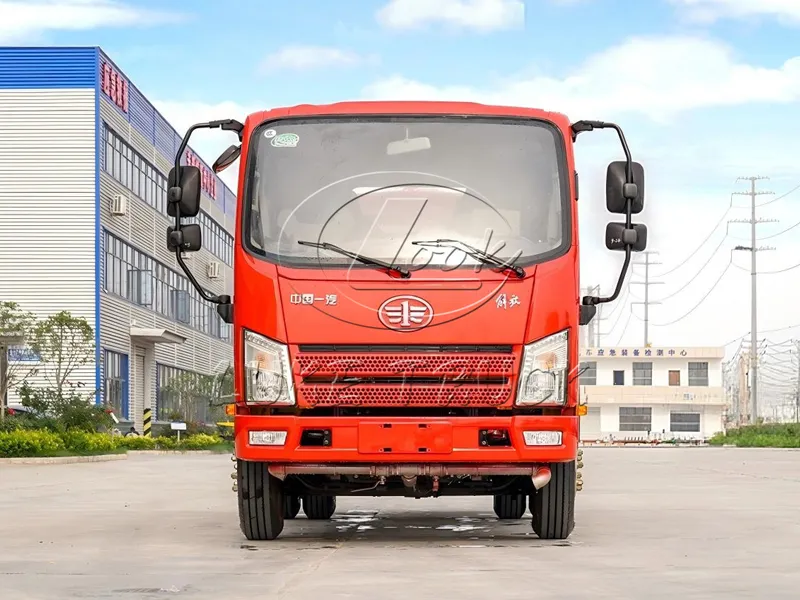

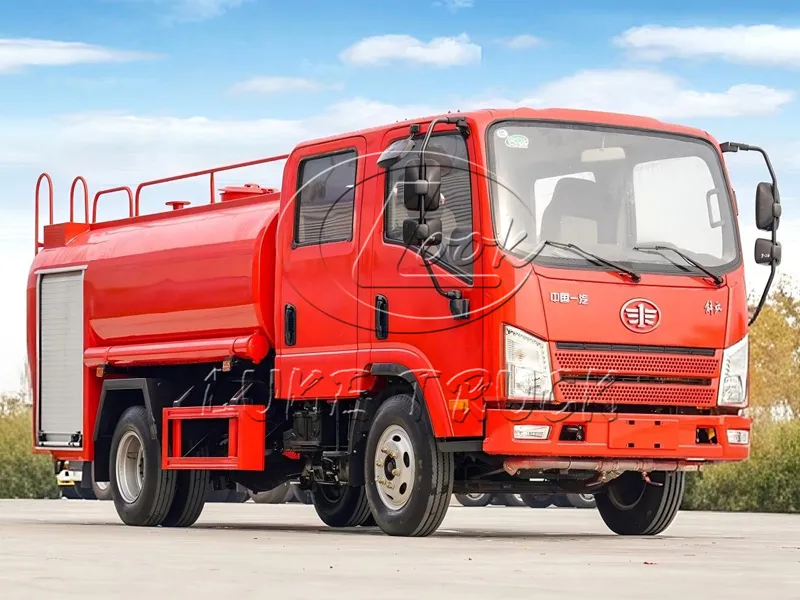

The FAW Double Cab Fire Sprinkler Truck is a multi-purpose special vehicle built on a medium-duty chassis, integrating fire suppression and sanitation sprinkling functions. It features dual-purpose design, efficient emergency response and cost-effectiveness. Equipped with a 65CWY-40 fire pump (flow rate: 40 L/s, head: 110 m) and a 360° rotating fire monitor (direct/spray modes, range: 50–80 meters). Widely used in municipal, industrial park, township and other scenarios.
Item | Specification | Item | Specification |
Brand | Qiyuan | Seating Capacity | 2+3 |
Product Name | Water Tank Fire Truck | Model | QY5070GXFSG30/C6 |
Gross Vehicle Weight (kg) | 6,870 | Tank Volume (m³) | 2.830 |
Rated Payload (kg) | 2,830 | Overall Dimensions (mm) | 6,110 × 2,050 × 2,750 |
Curb Weight (kg) | 3,665 | Wheelbase (mm) | 3,300 |
Approach/Departure Angle (°) | 24/18 | Front/Rear Overhang (mm) | 1,150/1,660 |
Axle Load (kg) | 2,160/4,710 | Maximum Speed (km/h) | 100 |
Water tank volume: 2.830 m³, water tank dimensions: 1,300 × 1,980 × 1,150 mm. Integral side and rear protection structure, rear protection ground clearance: 464 mm. ABS manufacturer: Zhejiang Wanxiang Technology Co., Ltd., model: VIE ABS-II. Main special equipment includes a fire pump and a fire monitor. | |||
Chassis Technical Specifications | |||
Item | Specification | Item | Specification |
Chassis Model | CA1070P40K51L2RBE6A85 | Chassis Name | Cargo Truck Chassis |
Brand | FAW | Tire Specification | 7.00R16LT 14PR |
Number of Axles | 2 | Number of Tires | 6 |
Leaf Spring Configuration | 3/3+1 | Front Track (mm) | 1,500 |
Fuel Type | Diesel | Rear Track (mm) | 1,475 |
Emission Standard | GB17691-2018 China National VI | ||
Engine Model | Engine Manufacturer | Displacement (ml) | Power (kW) |
Q25A-150E60 | Anhui Quanchai Power Co., Ltd. | 2,496 | 110 |
